Right Front of Engine Components (LCV)
WARNING: This page is about a different car, the 2016 Chevrolet Malibu Limited. However, it is still accessible from the selected car via links, so may be relevant.

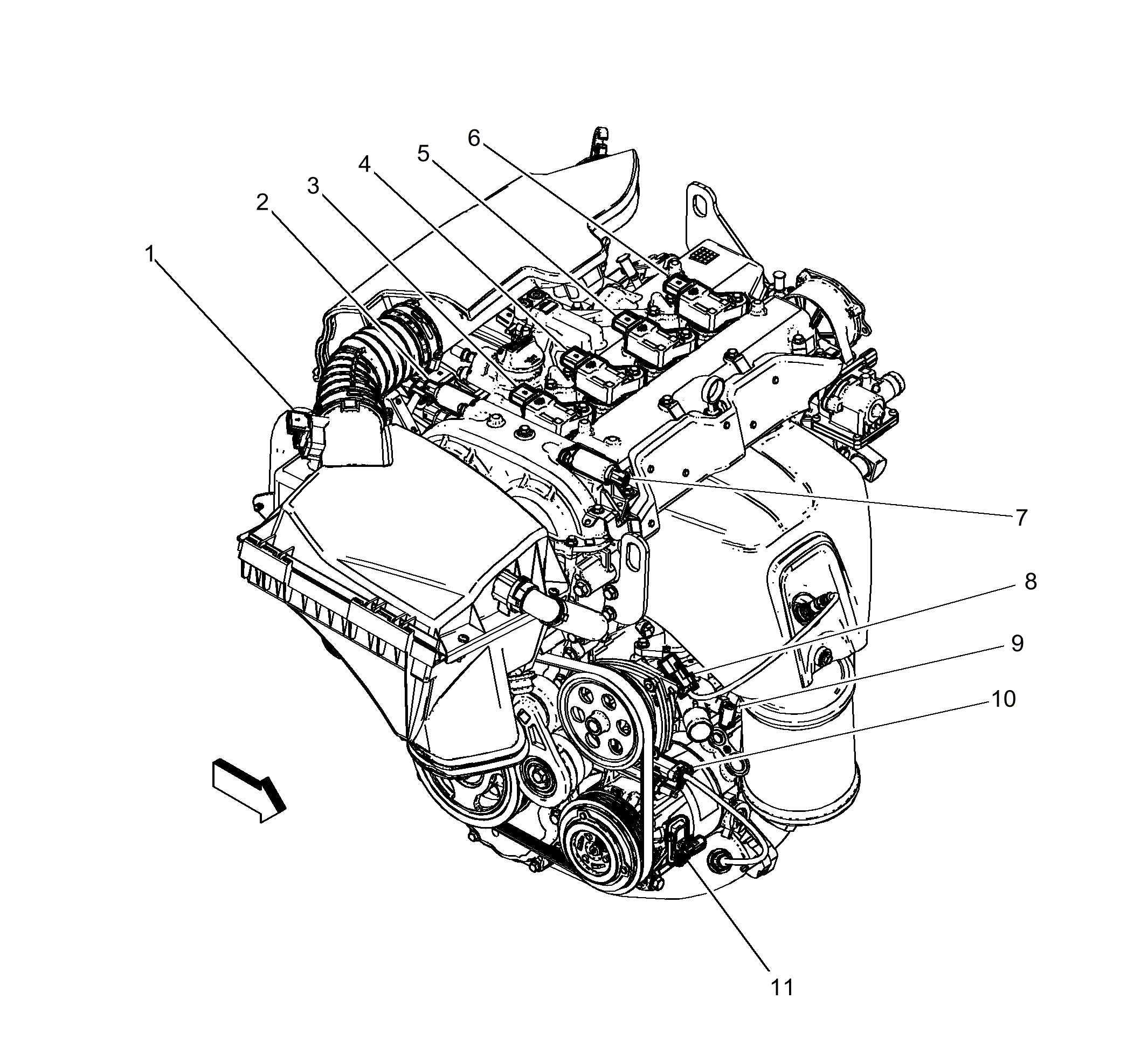

Right Front of Engine Components (LCV)
| Items |
|---|
| 1. B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor |
| 2. Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve - Intake |
| 3. T8A Ignition Coil 1 T8A Ignition Coil 1 |
| 4. T8B Ignition Coil 2 T8B Ignition Coil 2 |
| 5. T8C Ignition Coil 3 T8C Ignition Coil 3 |
| 6. T8D Ignition Coil 4 T8D Ignition Coil 4 |
| 7. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve - Exhaust |
| 8. B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 |
| 9. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 10. B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 |
| 11. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch |
