Driver Seat Adjuster Memory Switch Replacement (Encore)

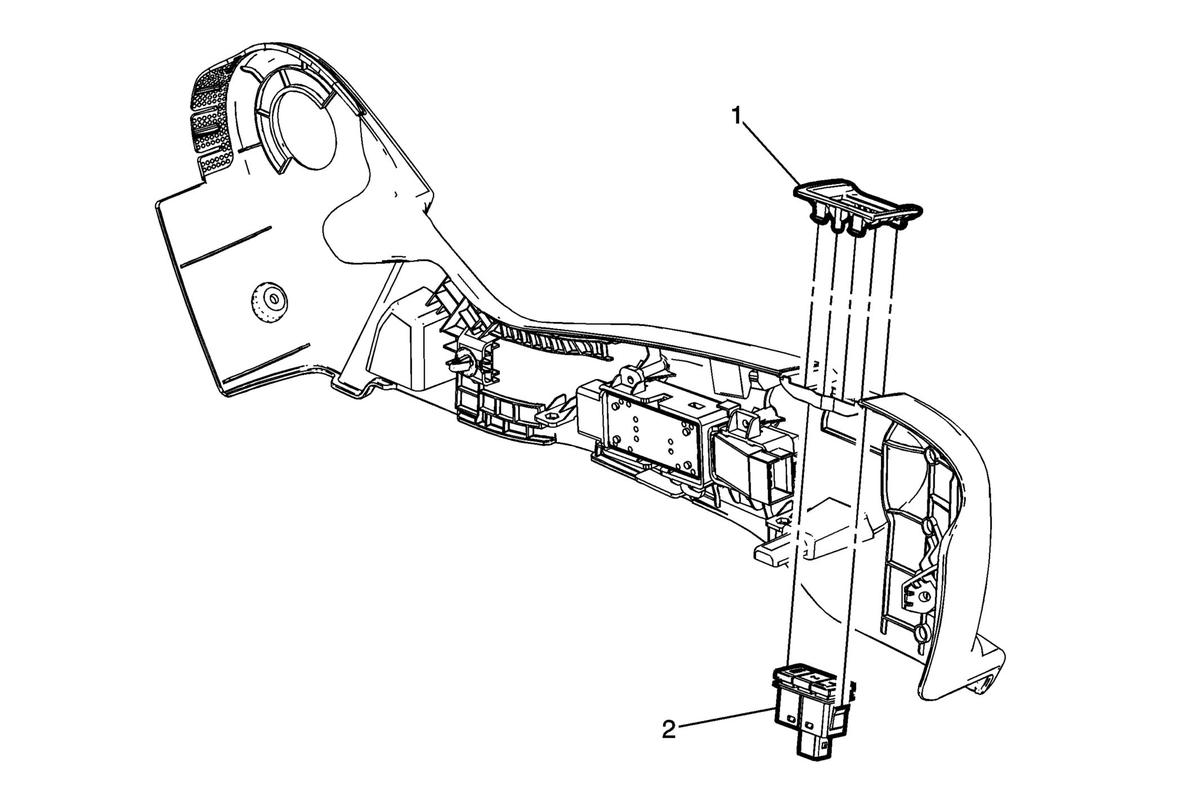

Fig 1: Driver Seat Adjuster Memory Switch (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat cushion outer finish panel. Refer to Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Manual)Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Power) .
1	Driver Seat Adjuster Memory Switch Bezel Procedure Use a flat-bladed tool to disengage the memory switch bezel from the seat cushion outer finish panel.
2	Driver Seat Adjuster Memory Switch Procedure Disconnect the electrical connection. Disengage the integral tabs and remove the switch from the face of the seat cushion outer finish panel.

Callout

Component Name

Preliminary Procedure
Remove the driver or passenger seat cushion outer finish panel. Refer to Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Manual)Driver or Passenger Seat Cushion Outer Finish Panel Replacement (Power) .

Driver Seat Adjuster Memory Switch Bezel
Procedure
Use a flat-bladed tool to disengage the memory switch bezel from the seat cushion outer finish panel.

Driver Seat Adjuster Memory Switch

Procedure

Disconnect the electrical connection.
Disengage the integral tabs and remove the switch from the face of the seat cushion outer finish panel.
