Accessory Switch Replacement (Encore)

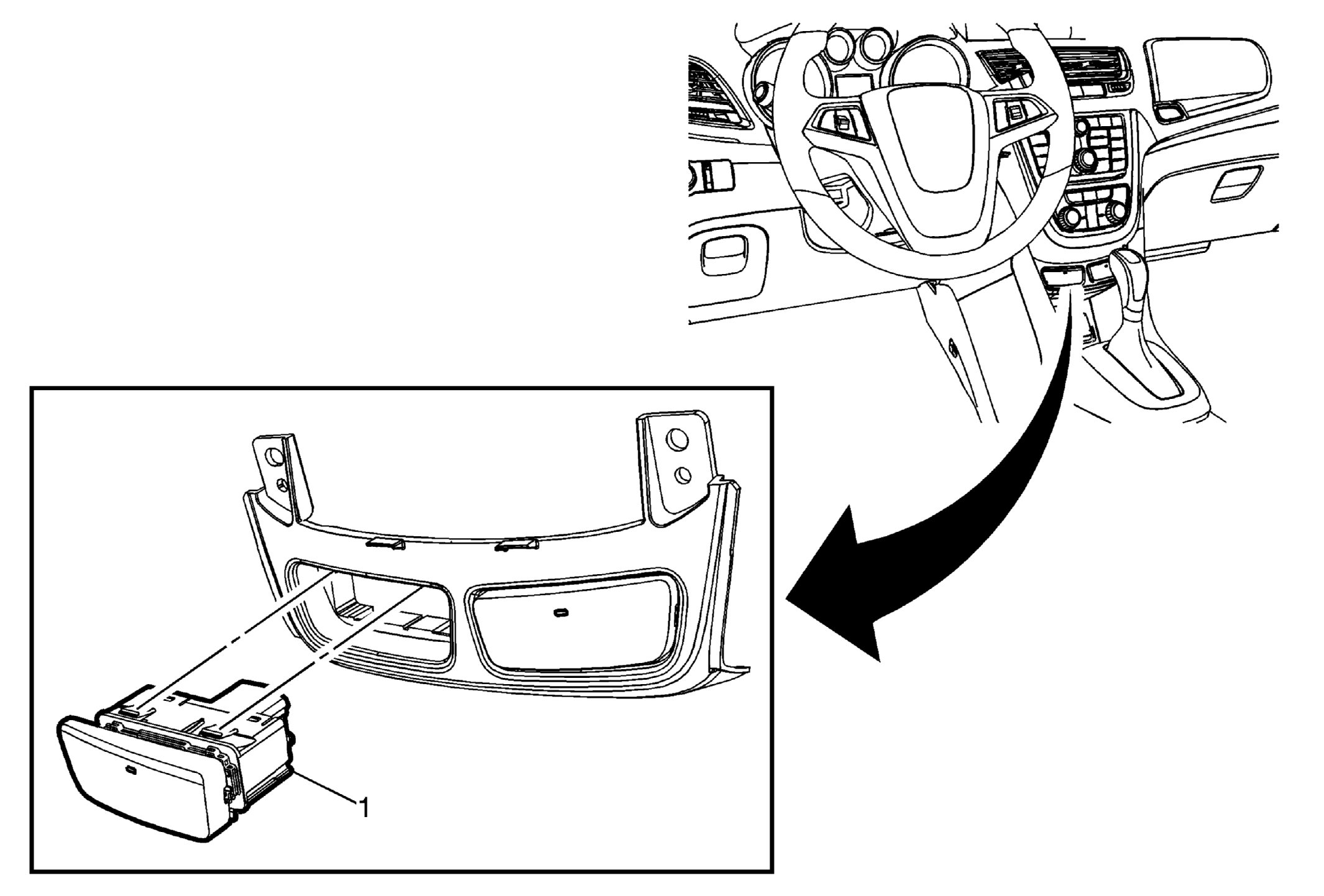

Fig 1: Accessory Switch (Encore)
GM2774993Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel lower center trim plate applique. Refer to Instrument Panel Lower Center Trim Plate Applique Replacement (Encore) .
1 Accessory Switch
Procedure
Depress the tabs on the switch to remove from the trim plate.
