Ambient Air Temperature Sensor Replacement

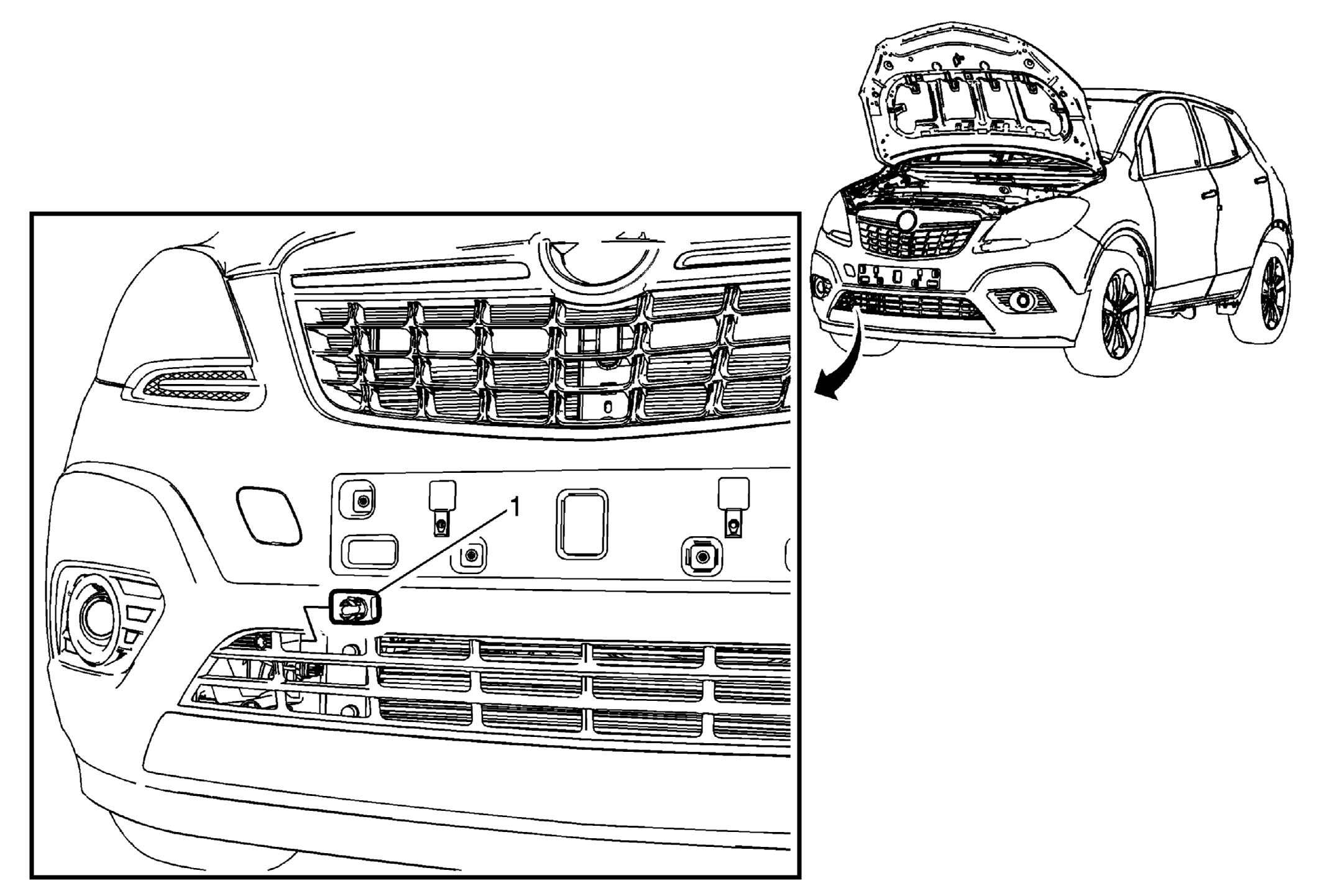

Fig 1: Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement (Trax) .
1	Ambient Air Temperature Sensor Procedures Squeeze the tabs on the ambient air temperature sensor, and push ambient air temperature sensor back out of the fascia. Disconnect ambient air temperature sensor electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia opening lower cover. Refer to Front Bumper Fascia Opening Lower Cover Replacement (Trax) .

Ambient Air Temperature Sensor

Procedures

Squeeze the tabs on the ambient air temperature sensor, and push ambient air temperature sensor back out of the fascia.
Disconnect ambient air temperature sensor electrical connector.
