Removal Procedure

  1. Exhaust Manifold Heat Shield Removal - Remove
  2. Turbocharger Wastegate Actuator - Remove - Turbocharger Disassemble

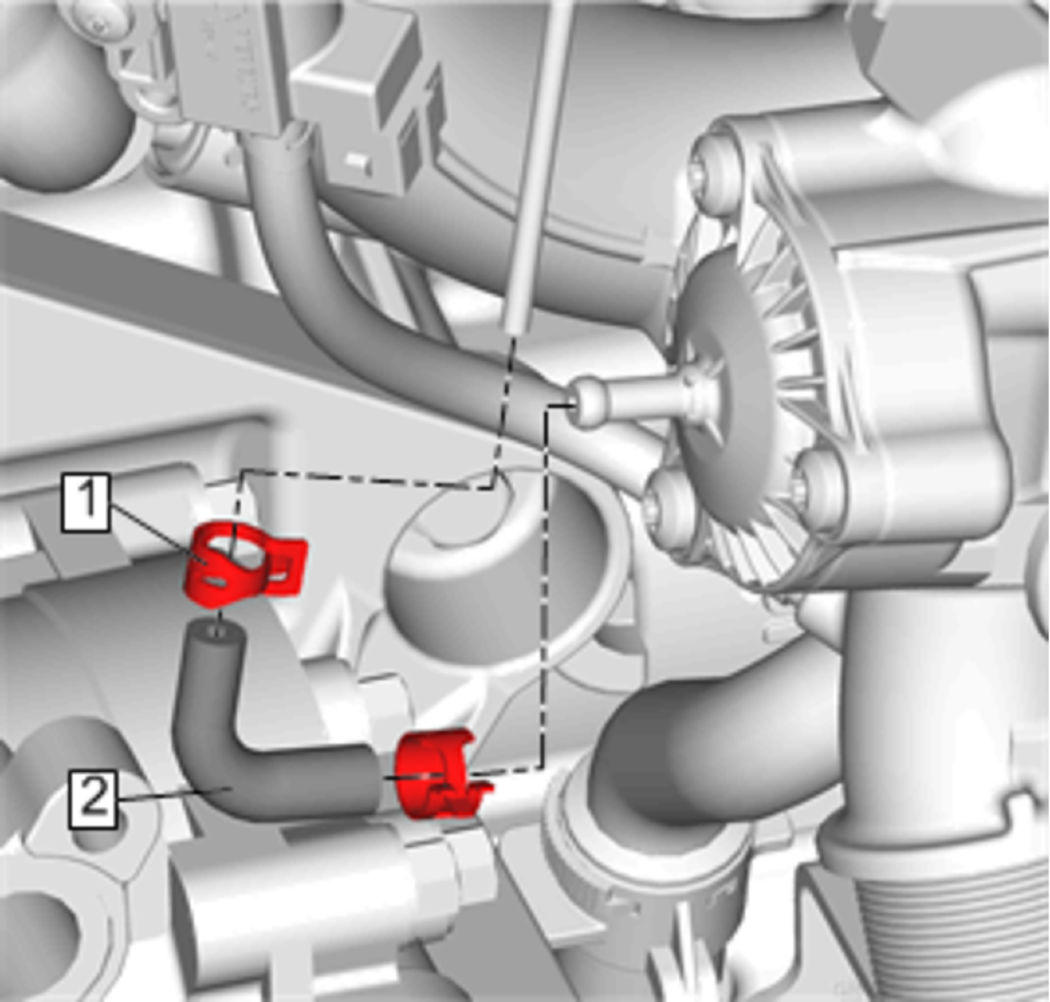

    3. Fig 1: Charge Air Bypass Valve Tube
    GM4033059Courtesy of GENERAL MOTORS COMPANY
  3. Hose Clamp (1) - Loosen & Position aside
  4. Charge Air Bypass Valve Tube Connector (2) - Remove

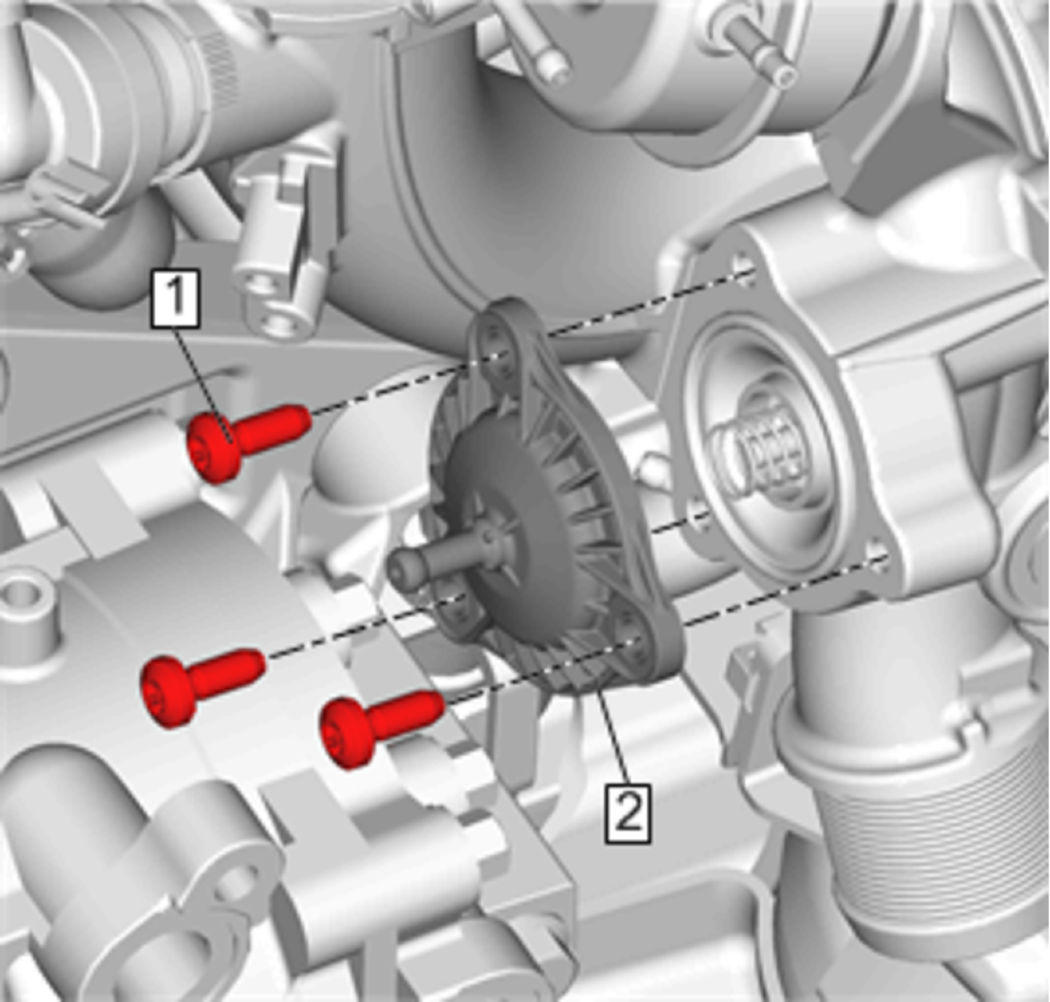

    5. Fig 2: Charge Air Bypass Valve Cover
    GM4033086Courtesy of GENERAL MOTORS COMPANY
  5. Fastener (1) - Remove
  6. Charge Air Bypass Valve Cover (2) - Remove

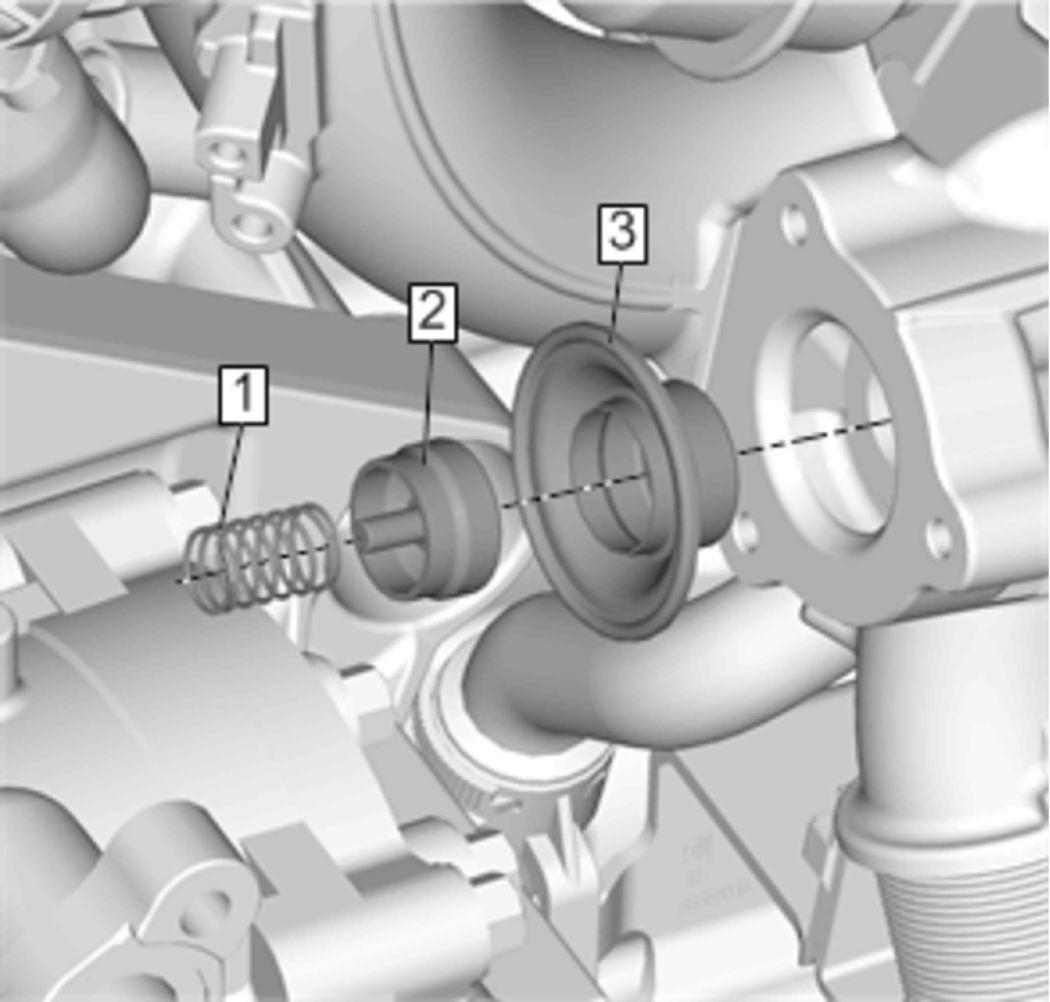

    7. Fig 3: Charge Air Bypass Valve Piston/Membrane
    GM4033157Courtesy of GENERAL MOTORS COMPANY
  7. Valve Spring (1) - Remove
  8. Charge Air Bypass Valve Piston (2) - Remove
  9. Charge Air Bypass Valve Membrane (3) - Remove
