Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

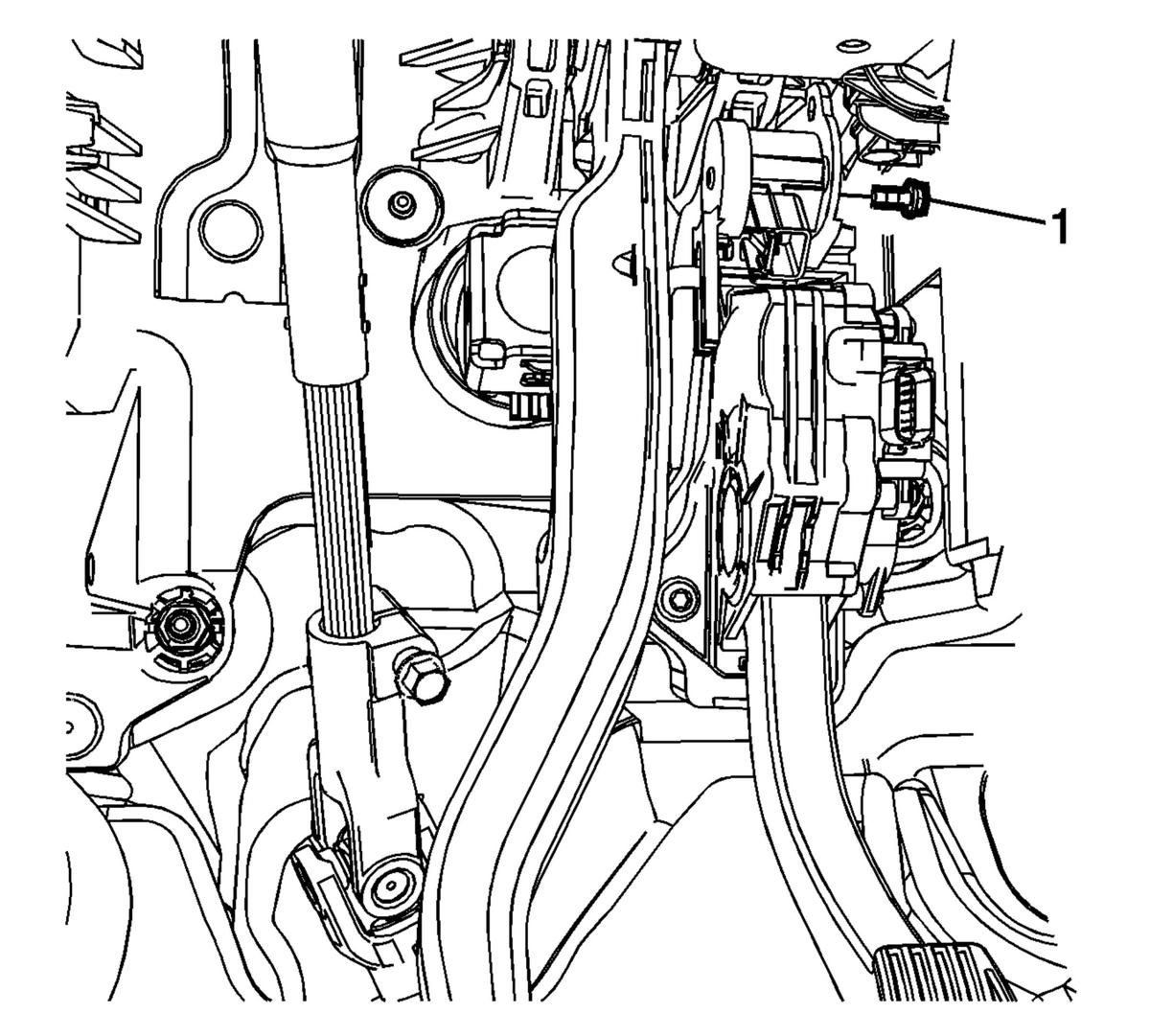

Fig 1: Left Side Front Floor Air Outlet Duct

Courtesy of GENERAL MOTORS COMPANY

Remove the left side front floor air outlet duct. Refer to Floor Front Air Outlet Duct Replacement - Left Side (Encore)Floor Front Air Outlet Duct Replacement - Left Side (Trax) .
Disconnect the brake pedal position sensor electrical connector.
Remove the brake pedal position sensor bolt (1).

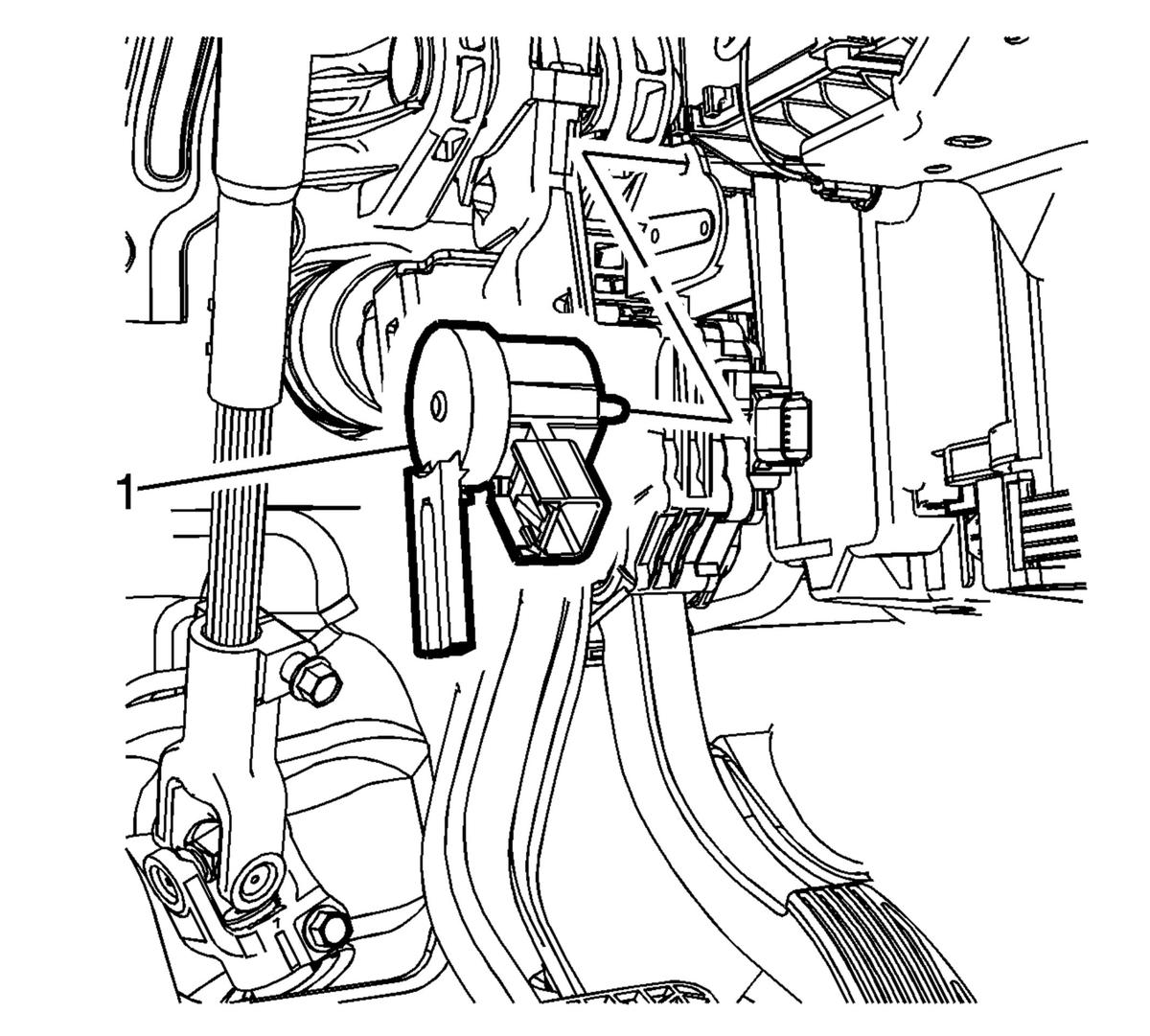

Fig 2: Brake Pedal Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Remove the brake pedal position sensor (1).
