Aiming Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

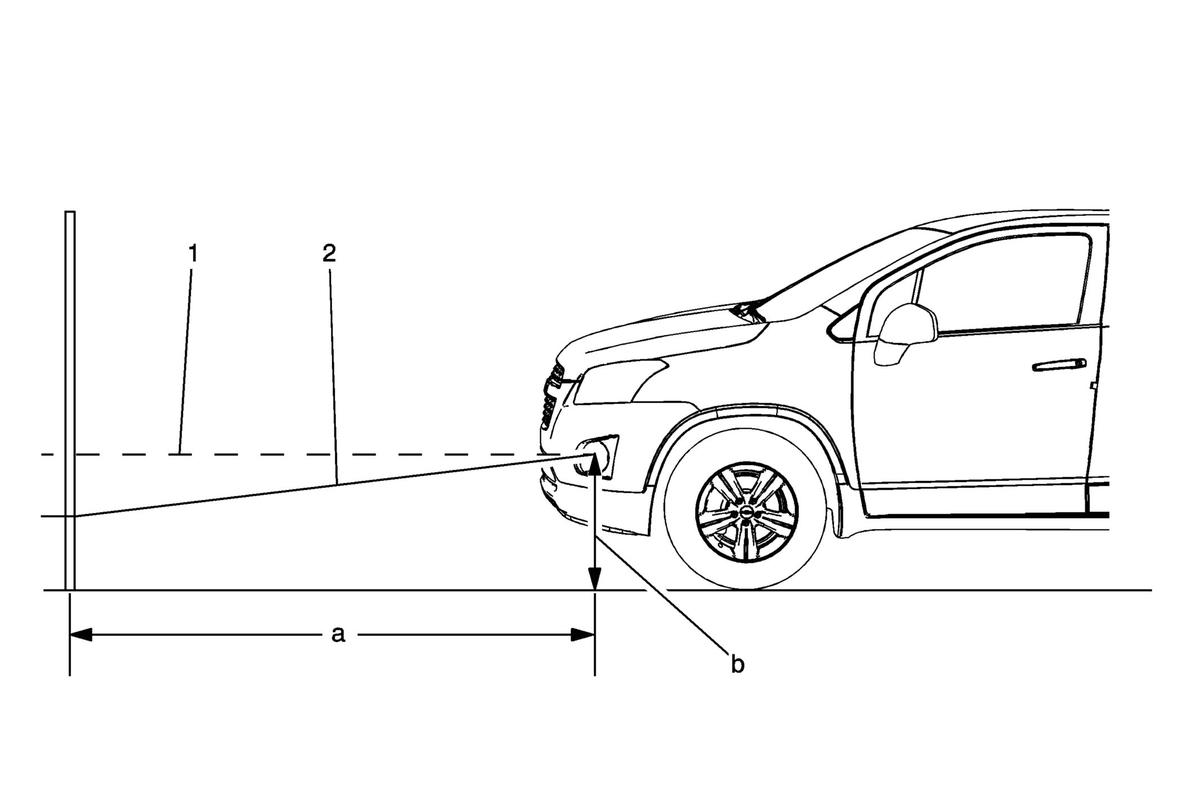

- Park the vehicle 7.6 m (25 ft) away from the target screen (a).
- Measure the distance from the center of the fog lamp to the ground line (b).
- Using this measurement, mark the horizontal centerline (1) of the fog lamp on the target screen directly in front of the vehicle.
- Turn ON the fog lamps.
- The top of the fog lamp beam image (2) on the target screen should be 102 mm (4 in) below the center of the fog lamp lens height (1).
- Adjust the fog lamp as required using the adjusting screw above the projector lens on the outside of the front bumper fascia.
- After the adjustments are made, turn OFF the fog lamps.
