Headlamp Bracket Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

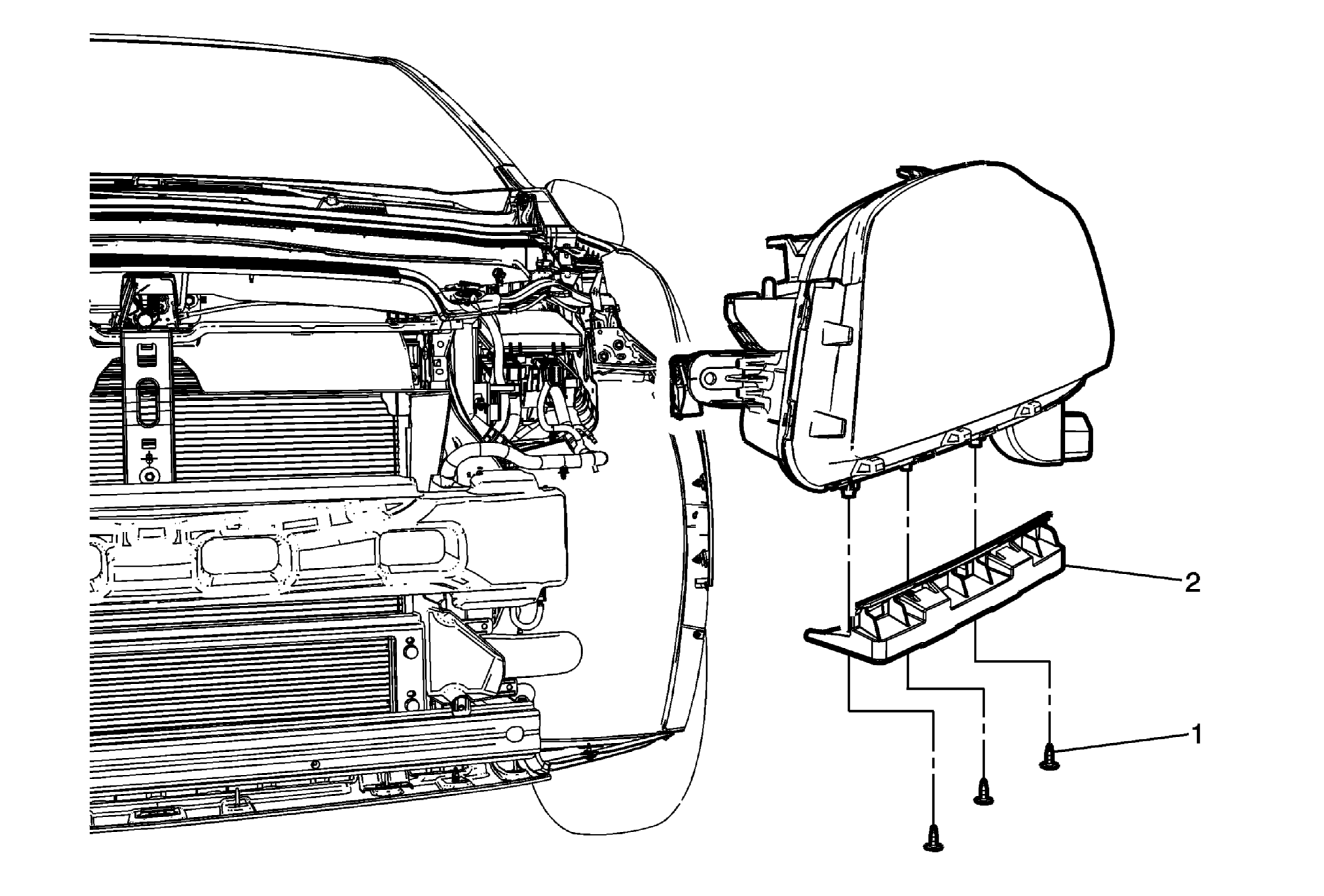

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax)Front Bumper Fascia Replacement (Encore) . |
|
| 1 | Headlamp Housing Bracket Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Headlamp Housing Bracket Procedure Remove the headlamp housing bracket from the headlamp assembly. |
