Headlamp Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

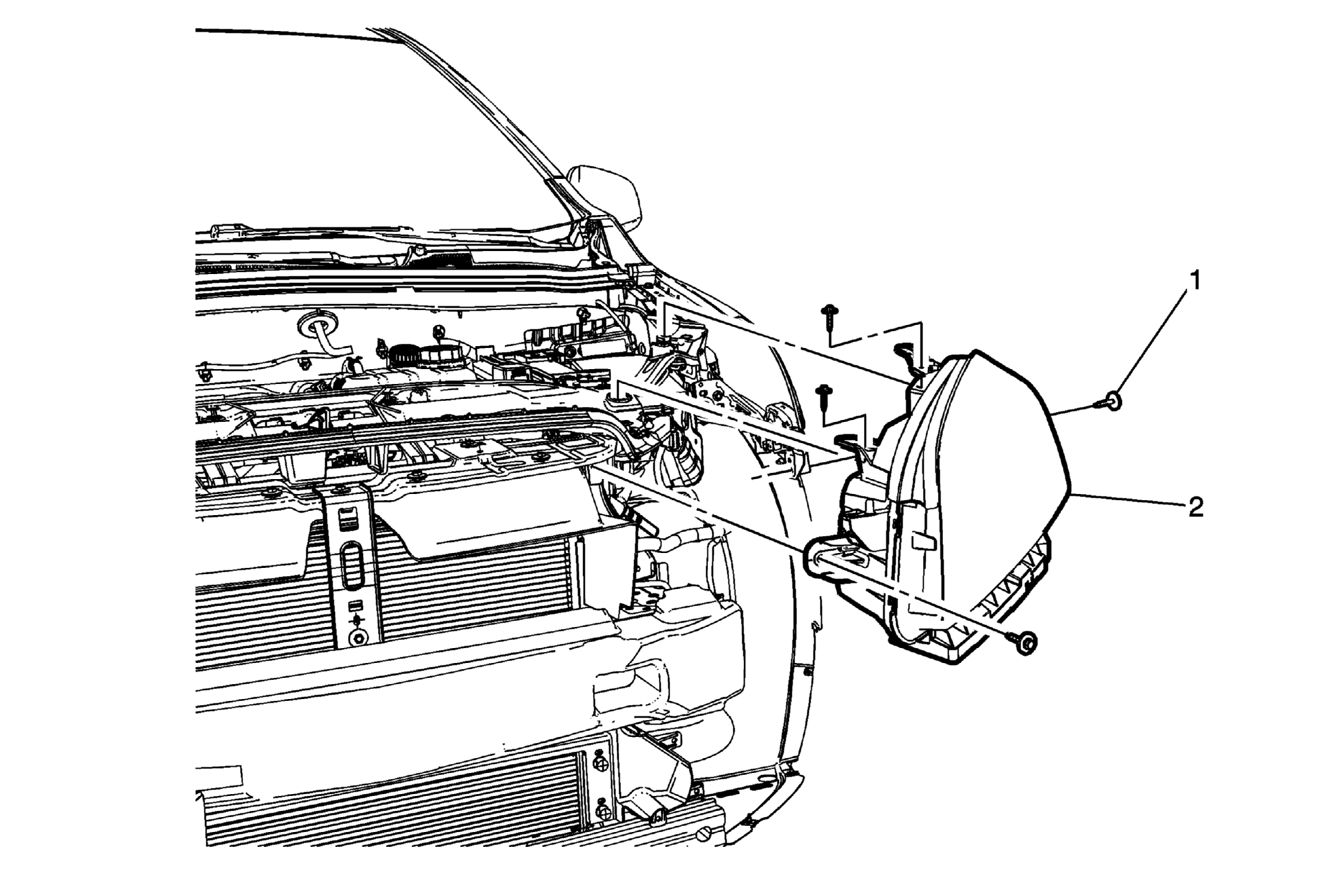

Fig 1: Headlamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Halogen Bulb Warning . Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax)Front Bumper Fascia Replacement (Encore) . Remove the front bumper fascia upper support. Refer to Front Bumper Fascia Upper Support Replacement (Trax) .
1	Headlamp Assembly Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Headlamp Assembly Procedure Disconnect the electrical connector and remove the headlamp assembly. Aim the headlamps after replacement. Refer to Headlamp Aiming .

Callout

Component Name

WARNING:

Refer to Halogen Bulb Warning .

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Trax)Front Bumper Fascia Replacement (Encore) .
Remove the front bumper fascia upper support. Refer to Front Bumper Fascia Upper Support Replacement (Trax) .

Headlamp Assembly Screw (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Headlamp Assembly

Procedure

Disconnect the electrical connector and remove the headlamp assembly.
Aim the headlamps after replacement. Refer to Headlamp Aiming .
