Radio Bracket Replacement

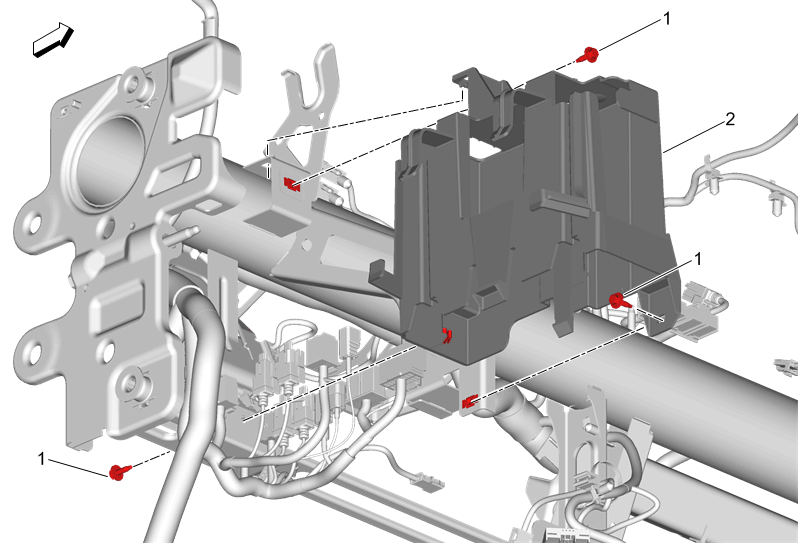

Fig 1: Radio Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Tie Bar Replacement
1	Radio Bracket Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Bracket Procedure Transfer components as necessary.
