Object High Speed GMLAN (KSG)

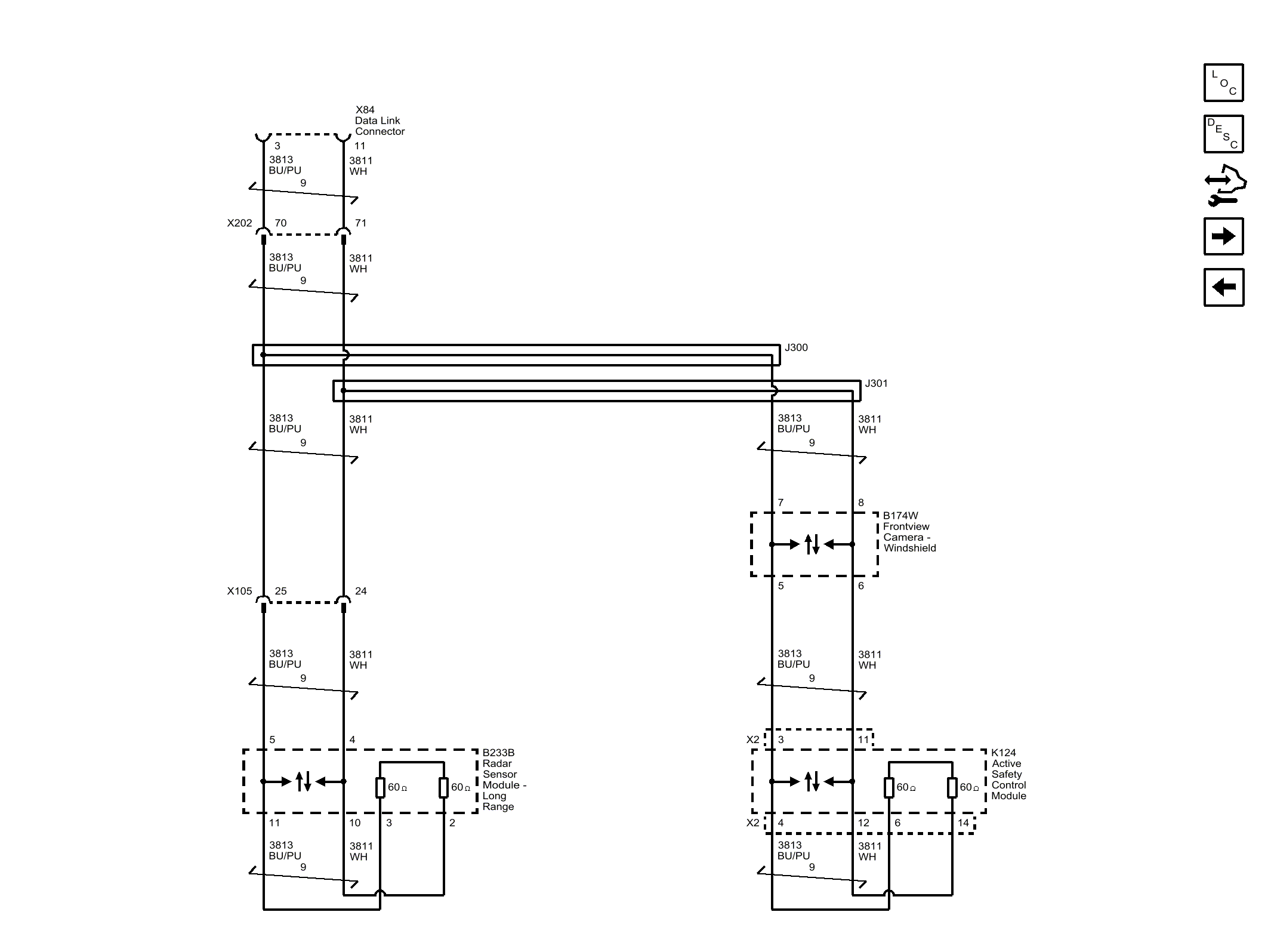

Fig 1: Object High Speed GMLAN (KSG)
Courtesy of GENERAL MOTORS COMPANY
