Generator Bracket Replacement

WARNING: This page is about a different car, the 2015 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

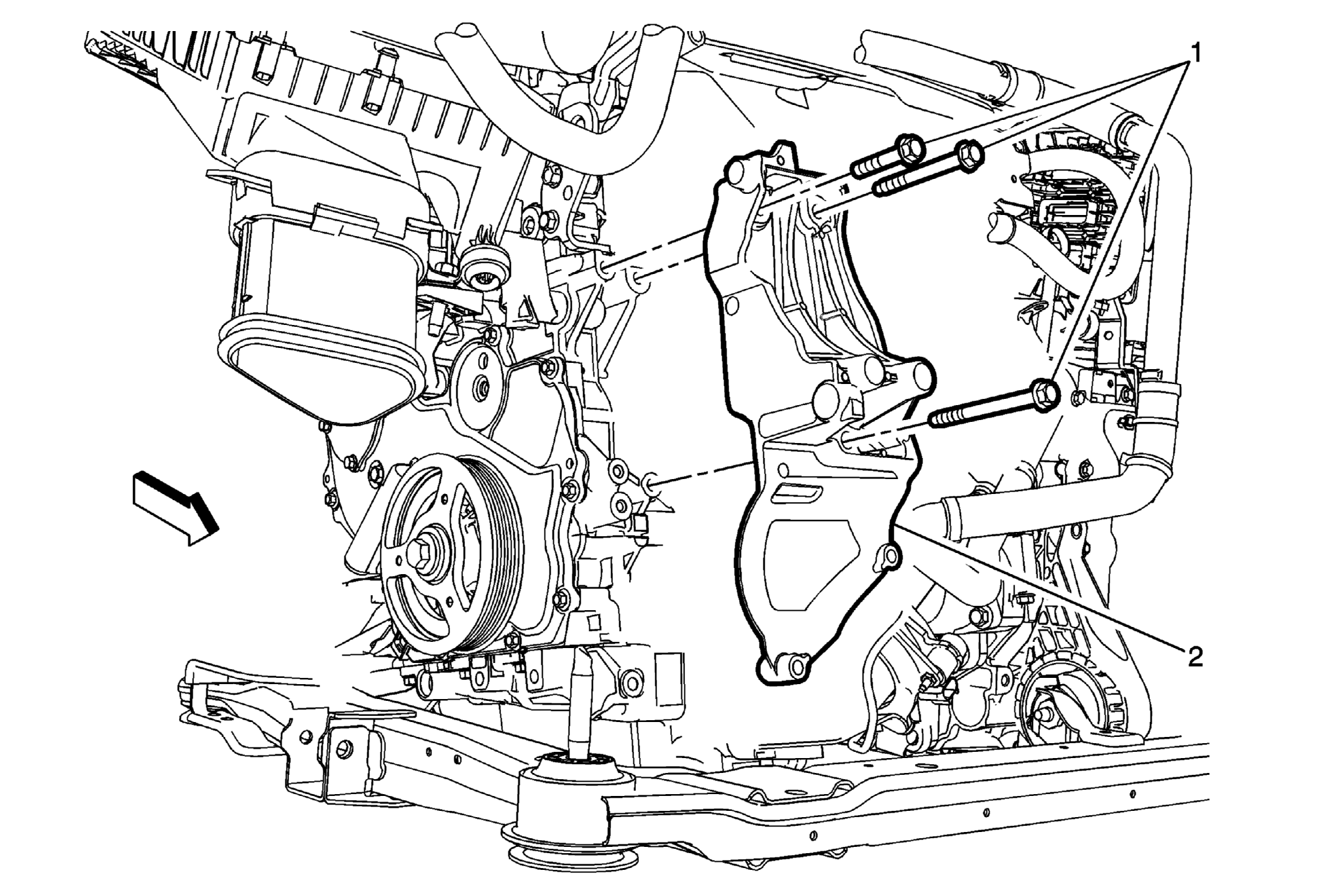

Fig 1: Generator Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the starter generator. Refer to Starter Generator Replacement . Reposition the A/C compressor. Refer to Air Conditioning Compressor Replacement (LFX)Air Conditioning Compressor Replacement (LUK) .
1	Generator and Air Conditioning Compressor Bracket Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 22 (16 lb ft)
2	Generator and Air Conditioning Compressor Bracket

Callout

Component Name

Preliminary Procedures

Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the starter generator. Refer to Starter Generator Replacement .
Reposition the A/C compressor. Refer to Air Conditioning Compressor Replacement (LFX)Air Conditioning Compressor Replacement (LUK) .

Generator and Air Conditioning Compressor Bracket Fastener (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
22 (16 lb ft)

Generator and Air Conditioning Compressor Bracket
