Driver or Passenger Seat Adjuster Memory Module Replacement

WARNING: This page is about a different car, the 2016 Buick LaCrosse. However, it is still accessible from the selected car via links, so may be relevant.

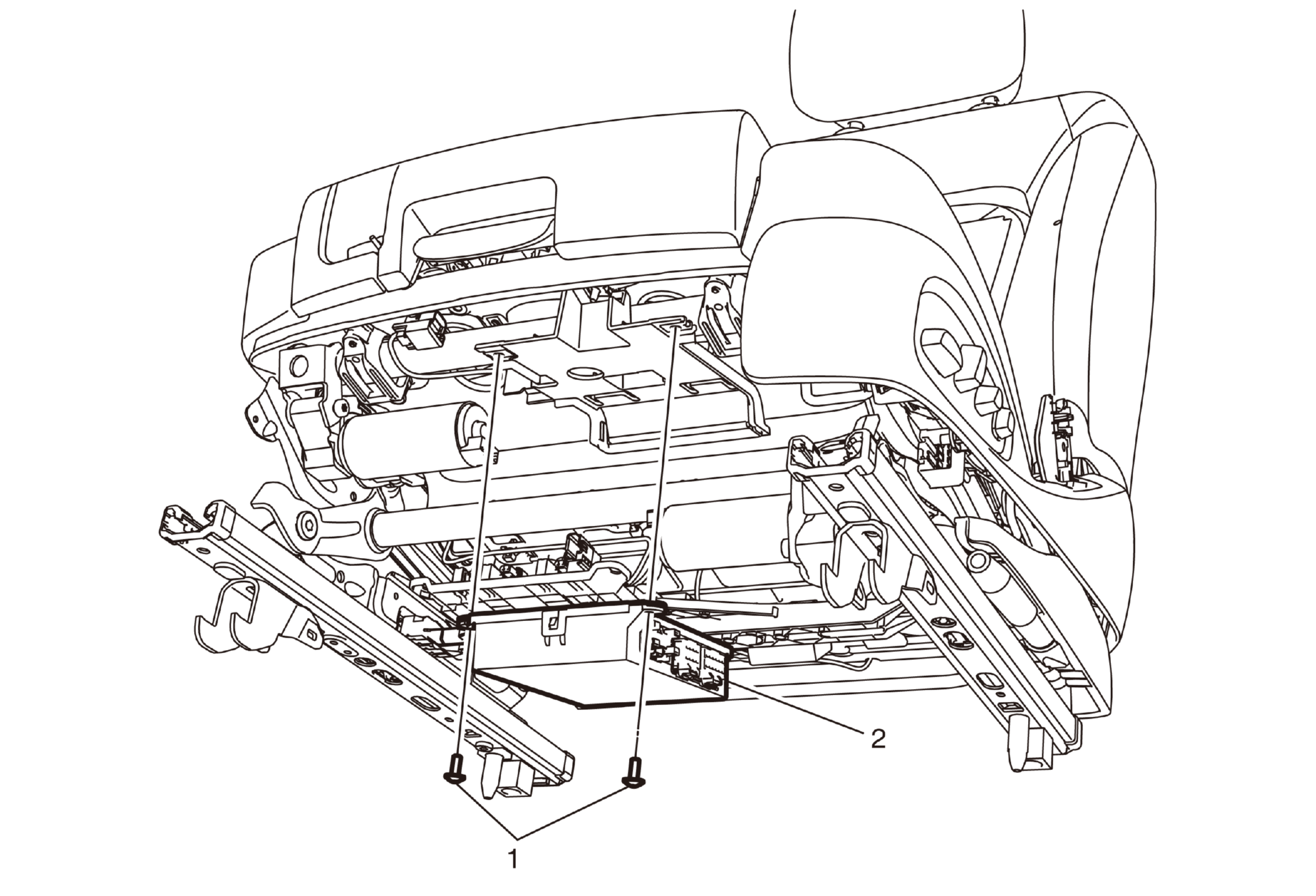

Fig 1: Driver or Passenger Seat Adjuster Memory Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .
1	Driver or Passenger Seat Adjuster Memory Module Screw (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Driver or Passenger Seat Adjuster Memory Module Procedure Disconnect the electrical connectors. Remove the module from the bracket, then pull downward away from the seat cushion frame. Refer to Service Programming System (SPS) for programing and setup information.

Callout

Component Name

Preliminary Procedure
Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .

Driver or Passenger Seat Adjuster Memory Module Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Driver or Passenger Seat Adjuster Memory Module

Procedure

Disconnect the electrical connectors.
Remove the module from the bracket, then pull downward away from the seat cushion frame.
Refer to Service Programming System (SPS) for programing and setup information.
