Headlamp - Left Low Beam

WARNING: This page is about a different car, the 2016 Chevrolet Impala Limited. However, it is still accessible from the selected car via links, so may be relevant.

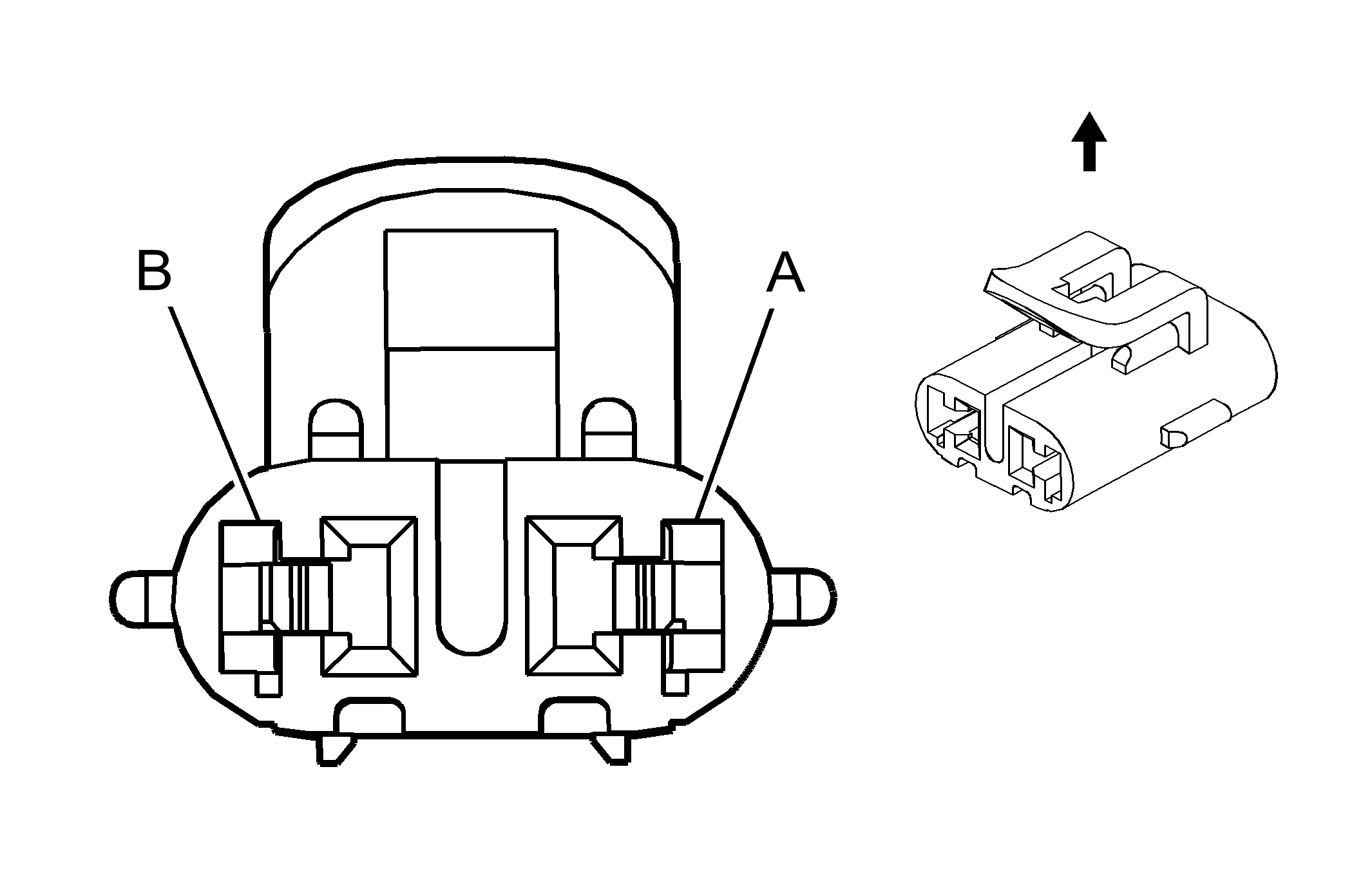

Fig 1: Headlamp - Left Low Beam Connector End View
GM1717009Courtesy of GENERAL MOTORS COMPANY
Headlamp - Left Low Beam

Pin Wire Circuit Function
A 0.8 GN 712 Left Headlamp Low Beam Supply Voltage
B 0.8 BK 1350 Ground
Connector Part Information
  • Harness Type: Left Front Headlamp Assembly
  • OEM Connector: H11
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 2-Way F (WH)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
