Audio Disc Player and USB Receptacle Replacement

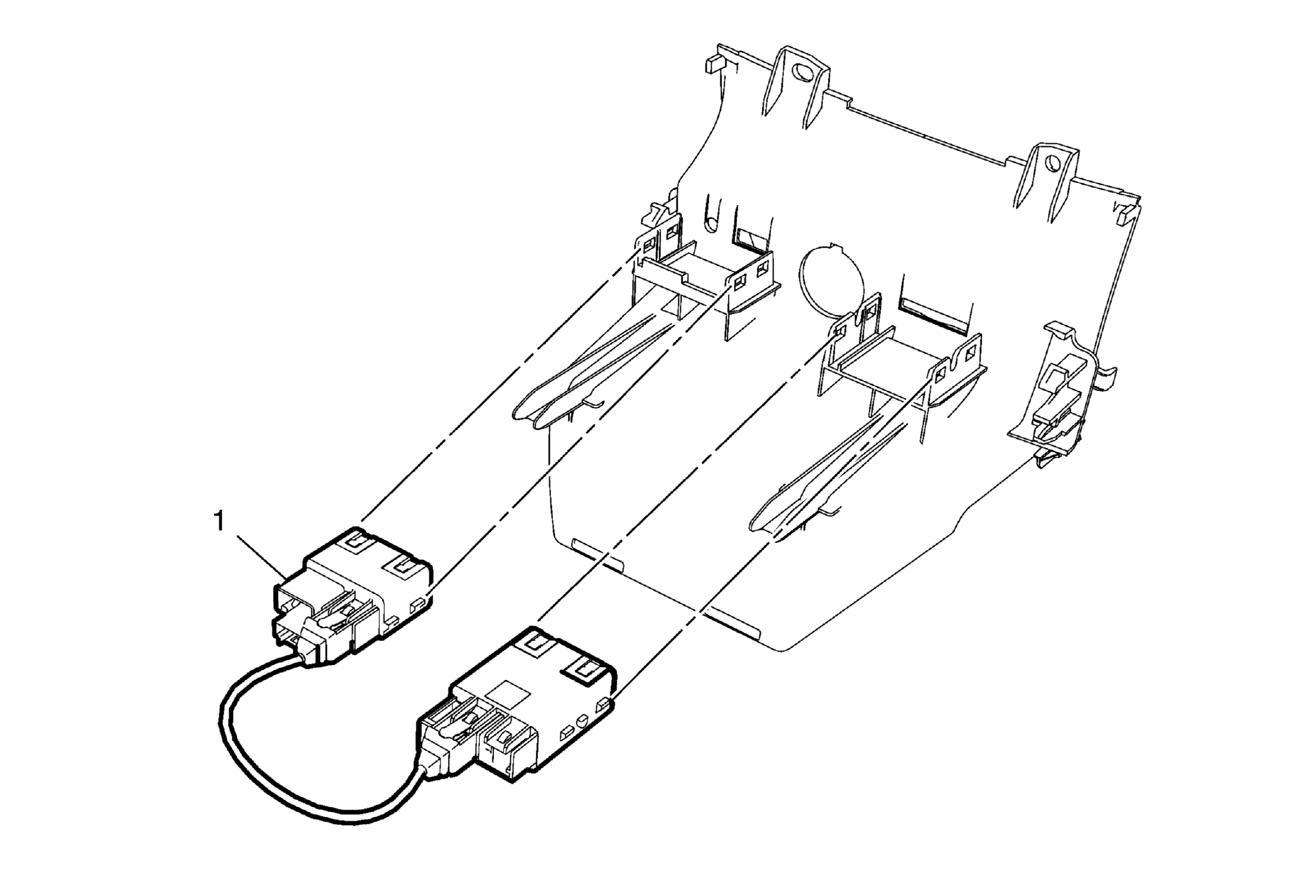

GM2949081
Callout Component Name
Preliminary Procedure
Remove the instrument panel lower center compartment. Refer to Instrument Panel Lower Center Compartment Replacement .
1 Audio Disc Player and USB Receptacle
Procedure
Unlock retaining tabs.
