Front Compartment Splash Shield Replacement

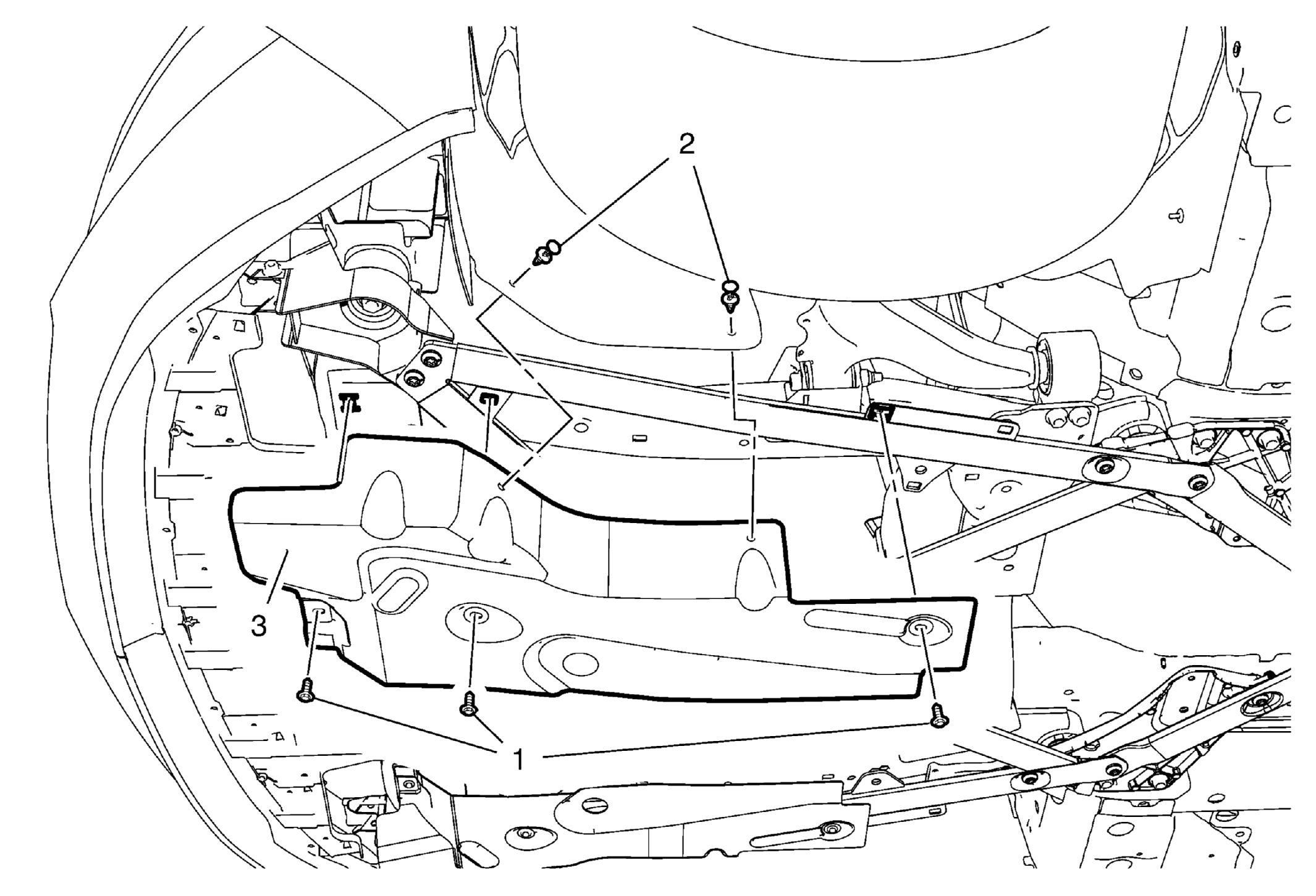

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Front Compartment Splash Shield Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 3 N.m (27 lb in) |
| 2 | Front Compartment Splash Shield Retainer (Qty: 2) |
| 3 | Front Compartment Splash Shield |
