Front Side Door Window Regulator Replacement

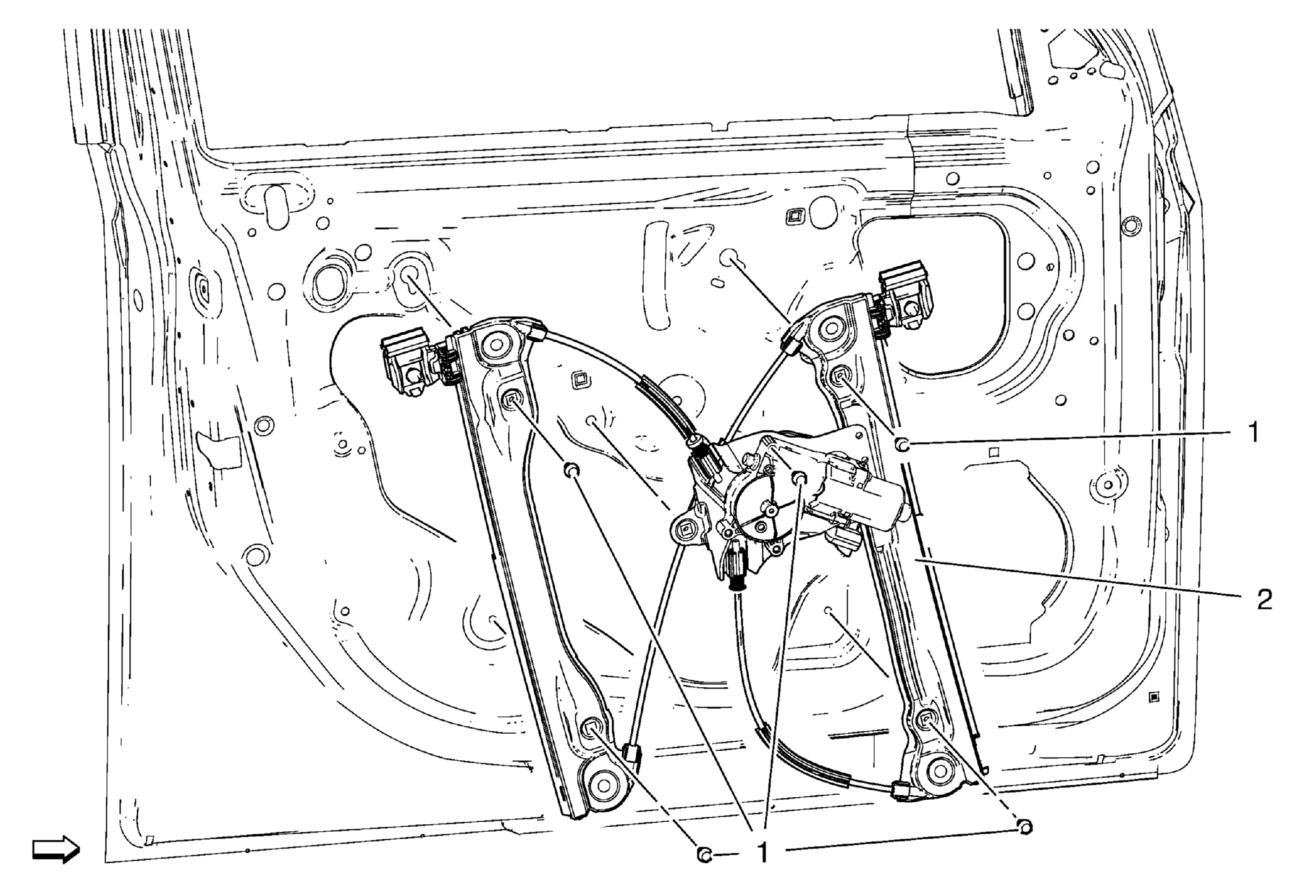

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front side door window. Refer to Front Side Door Window Replacement . |
|
| 1 | Front Side Door Window Regulator Screw (Qty: 5)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Front Side Door Window Regulator Assembly Procedure Remove all components as needed. |
