Quarter Window Replacement

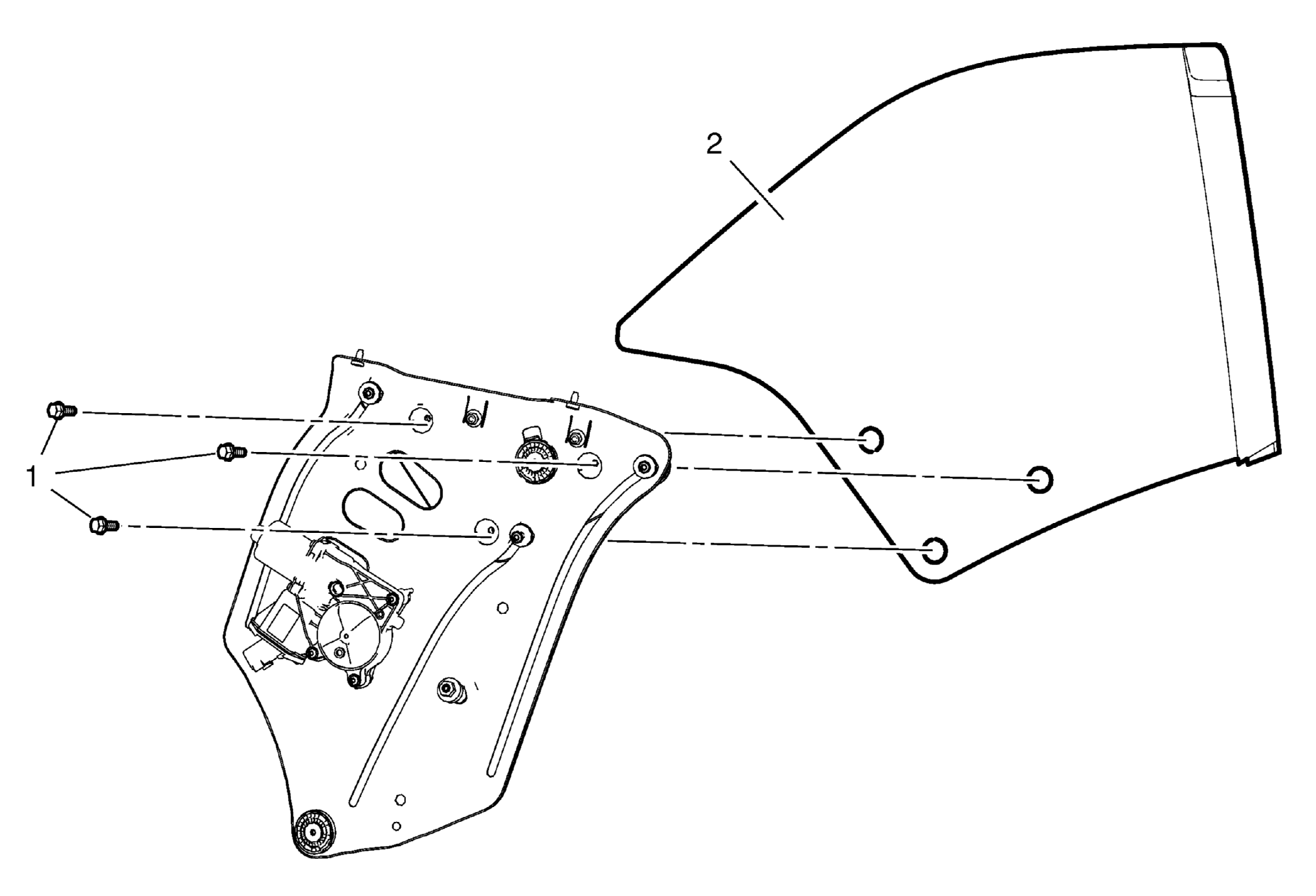

GM2966383
Callout Component Name
Preliminary Procedure
Remove the quarter window regulator. Refer to Quarter Window Regulator Replacement .
1 Quarter Window Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Quarter Window
Procedure
After repair, refer to Quarter Window Adjustment  to adjust the quarter window.
