Radio Bracket Replacement (Chevrolet)

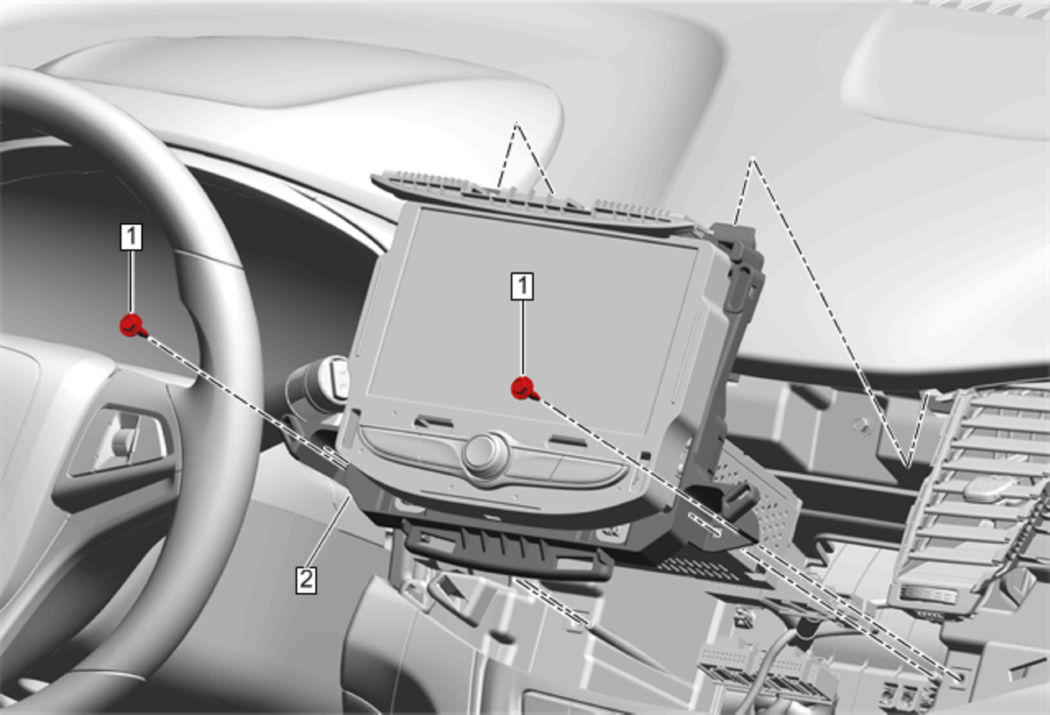

Fig 1: Radio Bracket (Trax)
GM4494869Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Instrument Panel Radio Front Trim Plate. Refer to Instrument Panel Radio Front Trim Plate Replacement (RPO IP1, Chevrolet)Instrument Panel Radio Front Trim Plate Replacement (RPO IOA, Chevrolet)
1 Radio Bracket Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Radio Bracket
Procedure
Transfer components as necessary.
