Low Frequency Instrument Panel Antenna Replacement (Chevrolet)

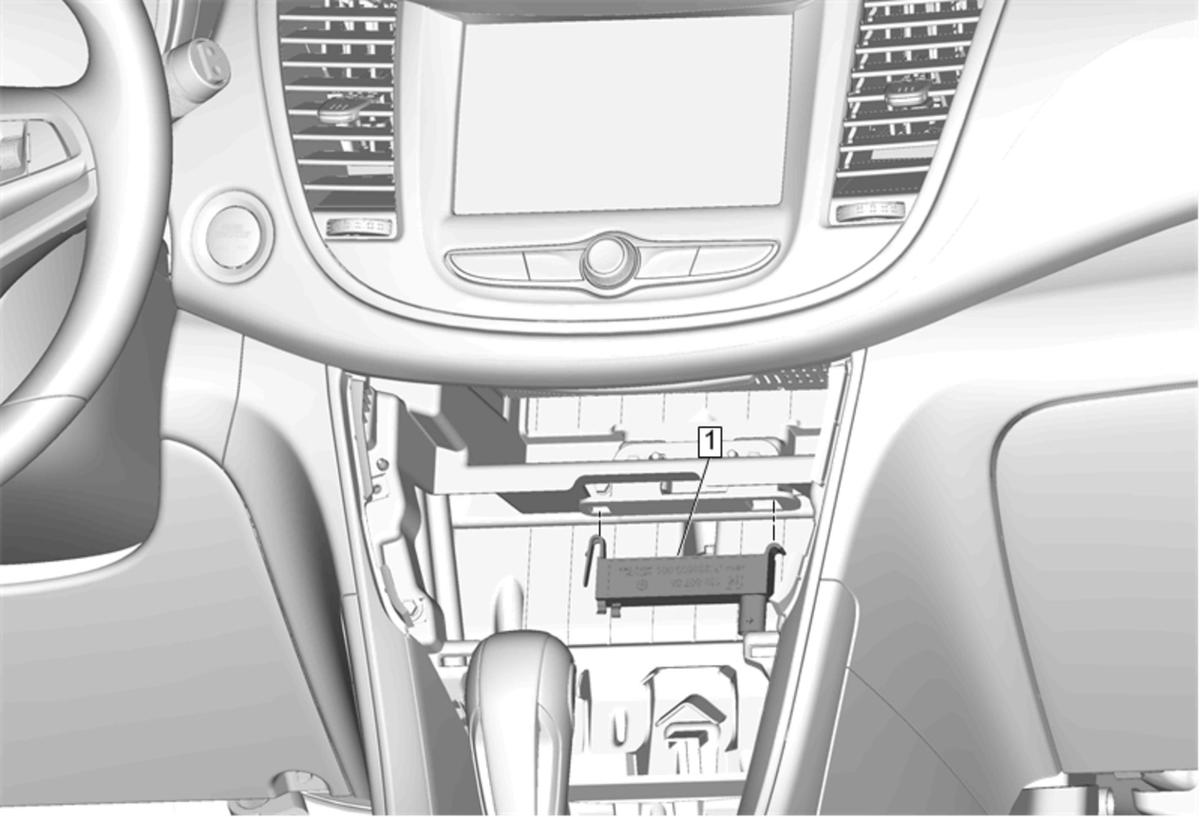

Fig 1: Low Frequency Instrument Panel Antenna (Chevrolet)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Heater and Air Conditioning Control with Cable Control. Refer to Heater and Air Conditioning Control with Cable Control Replacement (C60)
1	Low Frequency Instrument Panel Antenna Procedure Disconnect the electrical connector. Release the retaining tab.

Callout

Component Name

Preliminary Procedure
Remove Heater and Air Conditioning Control with Cable Control. Refer to Heater and Air Conditioning Control with Cable Control Replacement (C60)

Low Frequency Instrument Panel Antenna

Procedure
