Rear Side Door Window Regulator Replacement (Power)

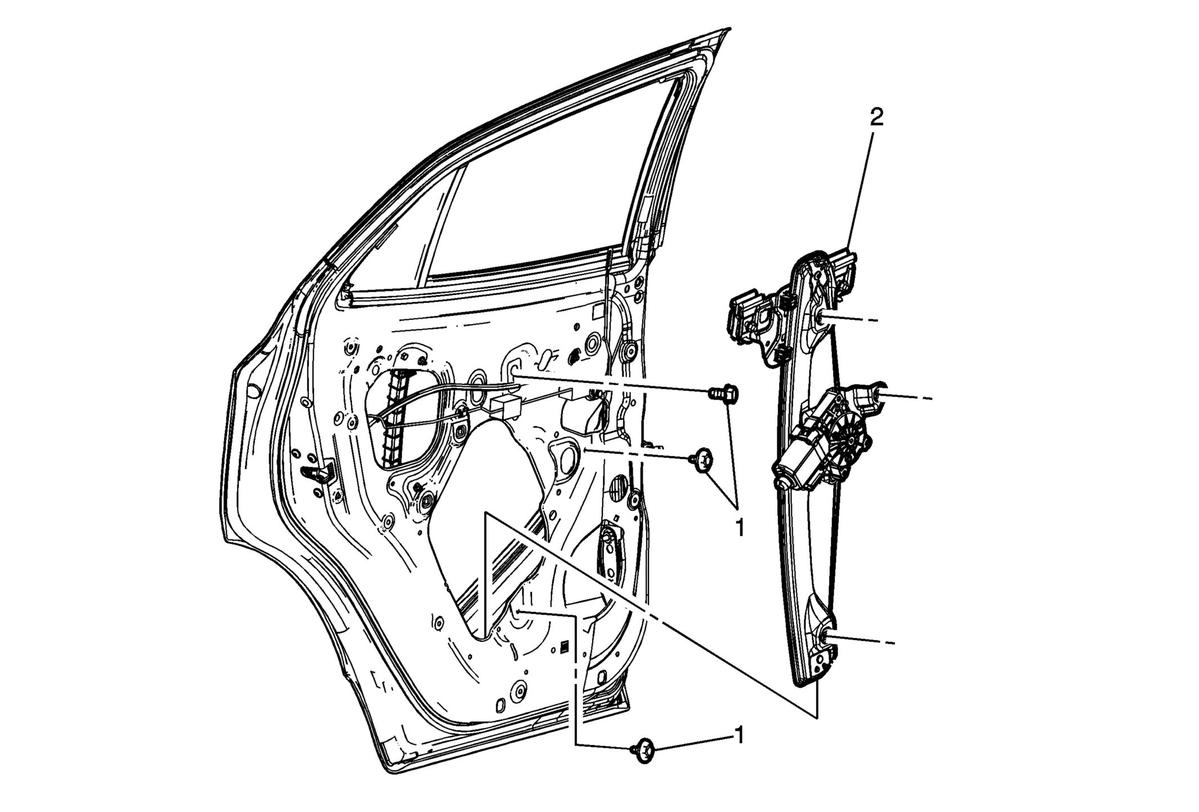

Fig 1: Rear Side Door Window Regulator (Power)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Remove the rear side door window from the window regulator guide nuts. Do Not remove the window from the vehicle, raise the window to the full up position, tape in place. Refer to Rear Side Door Window Replacement .
1	Rear Side Door Power Window Regulator Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Remove the rear side door water deflector. Disconnect the door electrical connector. Tighten 11 N.m (97 lb in)
2	Rear Side Door Power Window Regulator Procedure Transfer the rear side door window regulator motor. Refer to Rear Side Door Window Regulator Motor Replacement . Inspect the door window for proper operation before installing the door trim.

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

Preliminary Procedure Remove the rear side door window from the window regulator guide nuts. Do Not remove the window from the vehicle, raise the window to the full up position, tape in place. Refer to Rear Side Door Window Replacement .

Rear Side Door Power Window Regulator Screw (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Remove the rear side door water deflector.
Disconnect the door electrical connector.

Tighten
11 N.m (97 lb in)

Rear Side Door Power Window Regulator

Procedure

Transfer the rear side door window regulator motor. Refer to Rear Side Door Window Regulator Motor Replacement .
Inspect the door window for proper operation before installing the door trim.
