Ambient Air Temperature Sensor Replacement

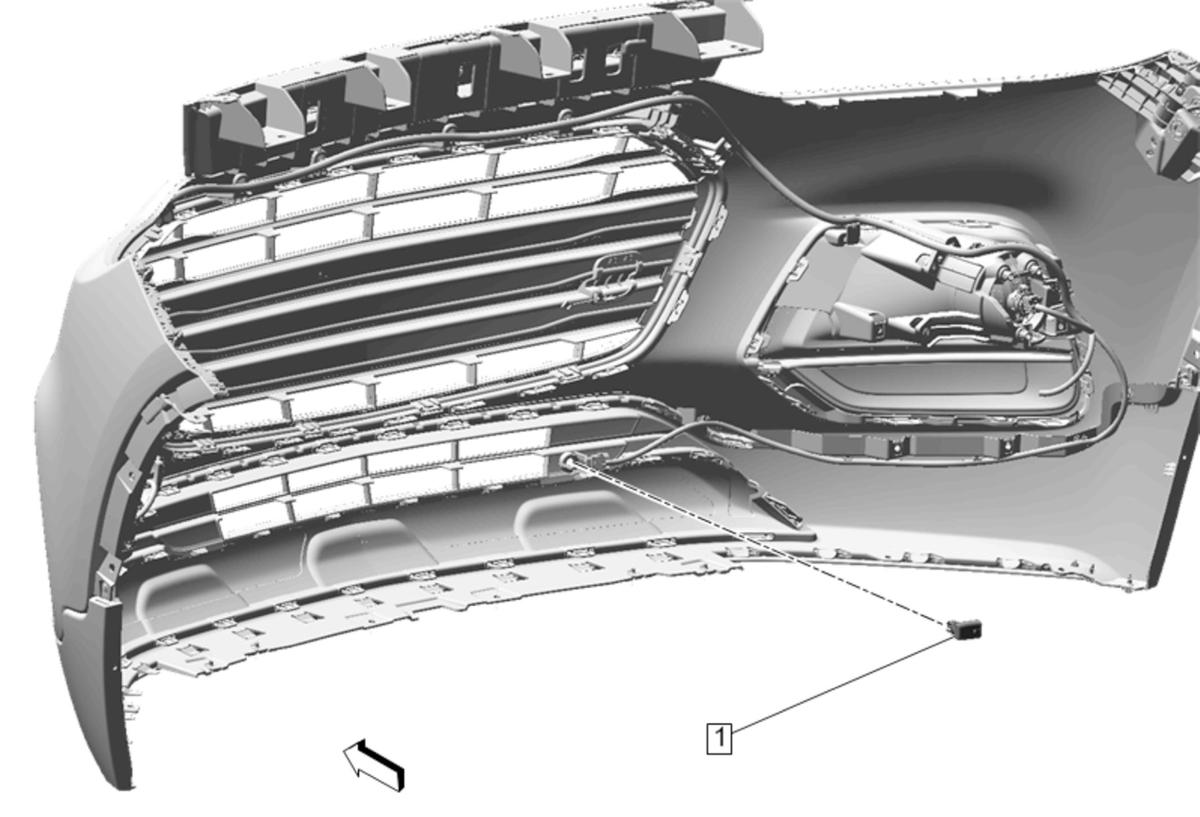

Fig 1: Ambient Air Temperature Sensor
GM4531838Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Bumper Fascia Replacement (Chevrolet)Front Bumper Fascia Replacement (Buick)
1 Ambient Air Temperature Sensor

Procedure

  1. Squeeze the tabs on the ambient air temperature sensor, and push ambient air temperature sensor back out of the fascia.
  2. Disconnect the electrical connector.
