Exhaust Muffler Replacement (LE2)

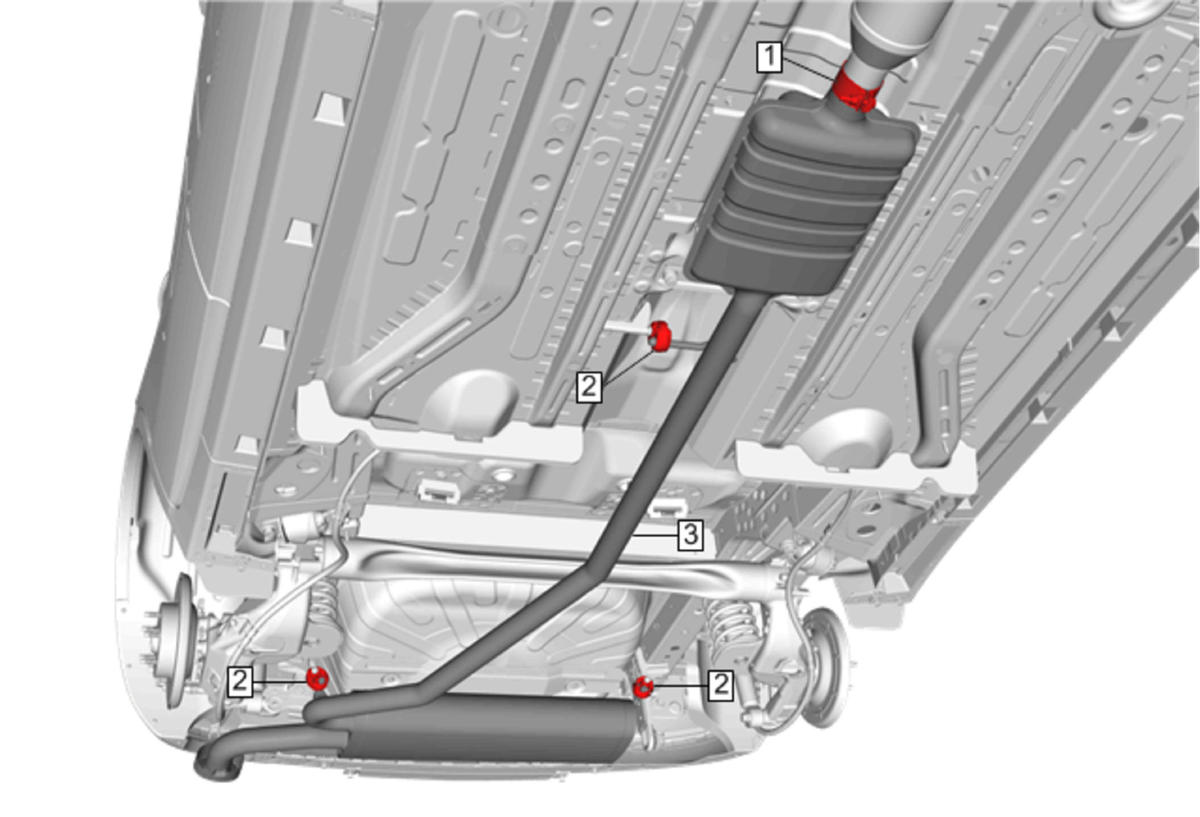

Fig 1: Exhaust Muffler (LE2)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: In order to avoid being burned, do not service the exhaust system while it is still hot. Service the system when it is cool. WARNING: Avoid contact with HOT components. Wear safety glasses and protective gloves to avoid personal injury. Preliminary Procedure Lifting and Jacking the Vehicle
1	Exhaust Pipe Clamp CAUTION: Refer to Fastener Caution . Tighten 50 N.m (37 lb ft)
2	Exhaust Isolator (Qty: 3) Procedure Clean and lubricate the exhaust isolators for ease of installation.
3	Exhaust Muffler Assembly Procedure Clean and lubricate the exhaust muffler isolator rods for ease of installation.
