Lane Departure Warning (Buick with UFL)

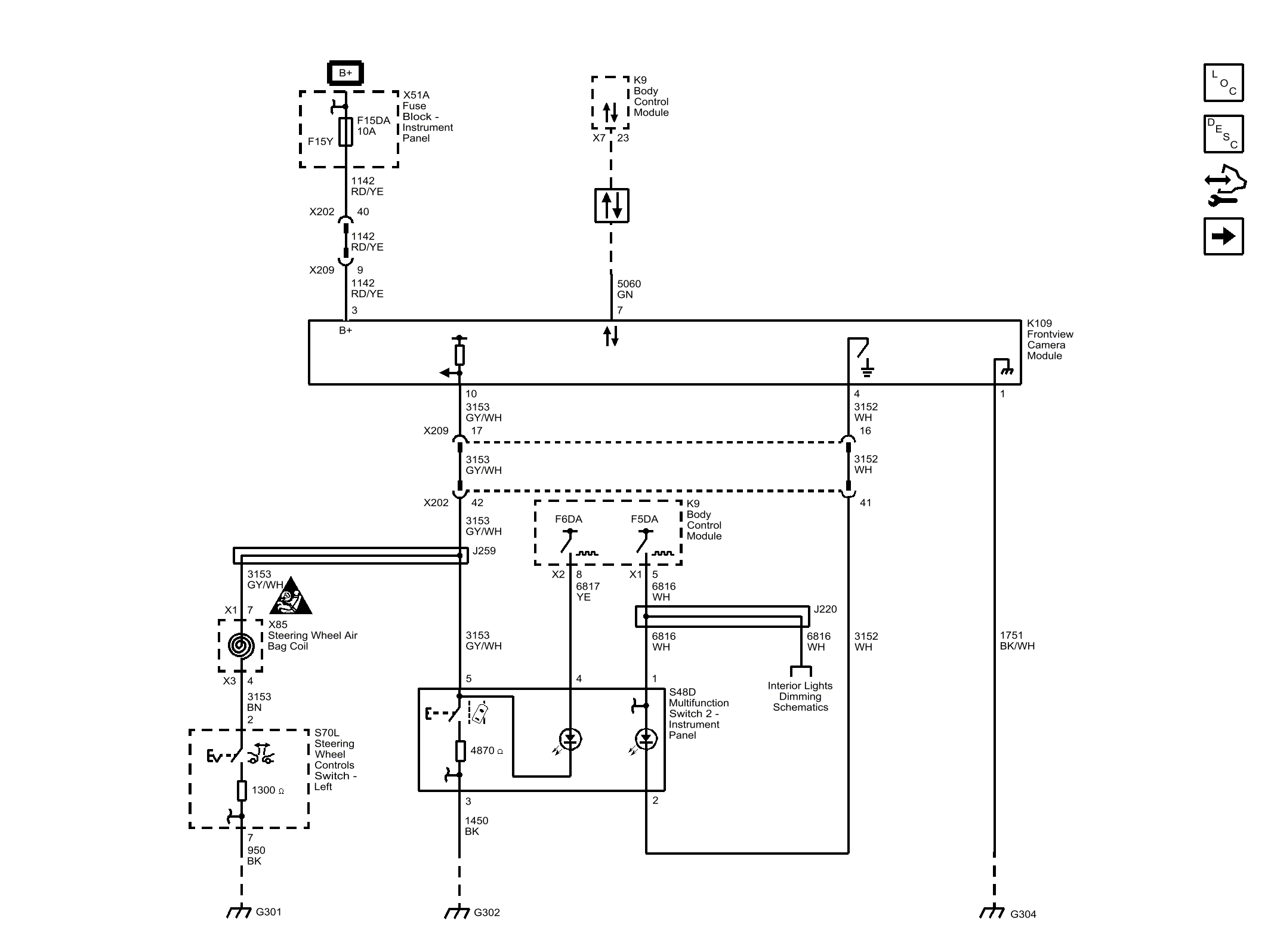

Fig 1: Lane Departure Warning (Buick with UFL)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
