Stop/Start System

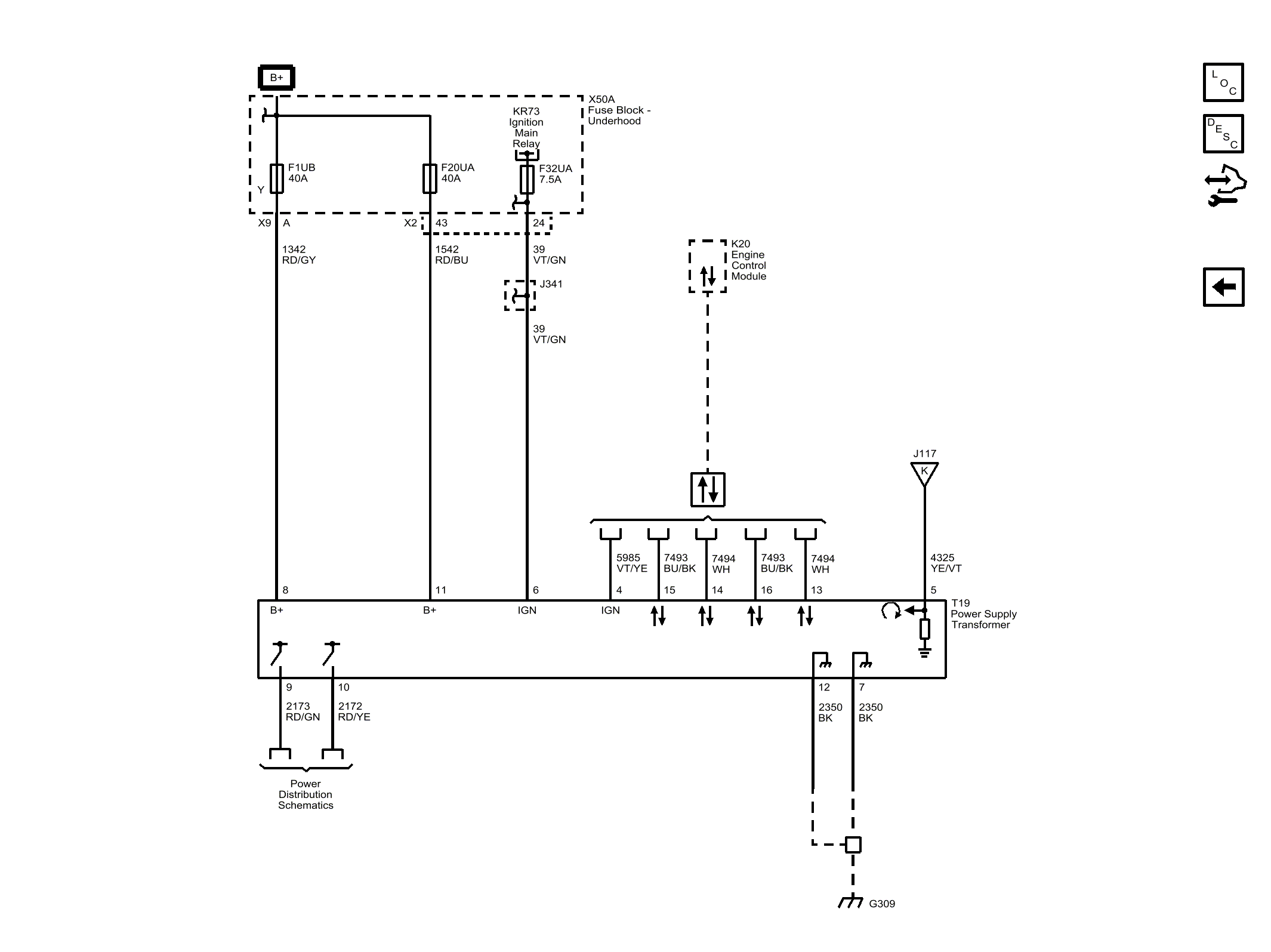

Fig 1: Stop/Start System
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
