Installation Procedure

    Fig 1: Generator And Nut
    GM4573557Courtesy of GENERAL MOTORS COMPANY
  1. Install Generator (3)
    2. CAUTION:

    Refer to Fastener Caution

  2. If necessary, install the generator mounting stud. (2) Tighten 9 N.m (80 lb in)
  3. Generator Nut (1)- Hand tighten

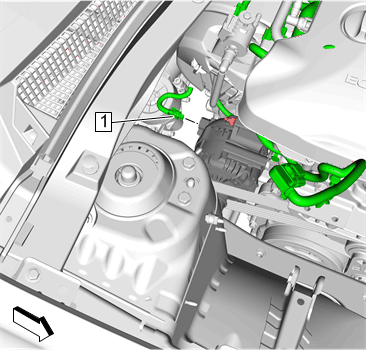

    4. Fig 2: Electrical Connector
    GM4573866Courtesy of GENERAL MOTORS COMPANY
  4. Connect Electrical Connector (1)
    5. Fig 3: Drive Belt
    GM4364170Courtesy of GENERAL MOTORS COMPANY
  5. Install Drive Belt (1)Drive Belt Replacement (LTG)Drive Belt Replacement (LCV)
    6. Fig 4: Fuel Feed Pipe
    GM4520795Courtesy of GENERAL MOTORS COMPANY
  6. Install Fuel Feed Pipe (1)Fuel Feed Pipe Replacement (Engine LTG)Fuel Feed Pipe Replacement (Tank)Fuel Feed Pipe Replacement (Engine LCV)
    7. Fig 5: Evaporative Emission Canister Purge Tube
    GM3829325Courtesy of GENERAL MOTORS COMPANY
  7. Install Evaporative Emission Canister Purge Tube (1)Evaporative Emission Canister Purge Tube Replacement (LTG)Evaporative Emission Canister Purge Tube Replacement (LCV)
    8. Fig 6: Evaporative Emission Canister Purge Solenoid Valve Hose
    GM4530821Courtesy of GENERAL MOTORS COMPANY
  8. Evaporative Emission Canister Purge Solenoid Valve Hose (1)Evaporative Emission Canister Purge Solenoid Valve Hose Replacement (LTG)Evaporative Emission Canister Purge Solenoid Valve Hose Replacement (LCV)
  9. Raise and support the vehicle. Lifting and Jacking the Vehicle
    10. Fig 7: Protective Cap And Generator Nut
    GM4577875Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Anti-rotation tab is in the 12 o'clock position (arrow).

  10. Install Battery Positive Cable (3)
  11. Install Generator Nut (1) and tighten 15 N.m (11 lb ft)
  12. Install Protective Cap (2)
  13. Lower the vehicle.

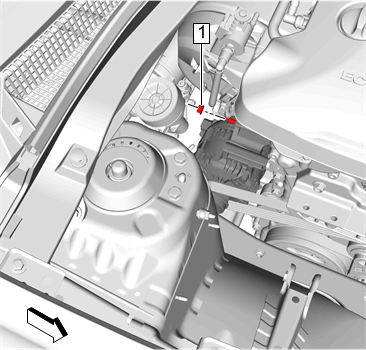

    14. Fig 8: Generator Nut
    GM4573865Courtesy of GENERAL MOTORS COMPANY
  14. Remove the generator nut (1).
    15. Fig 9: Generator Shield
    GM4573536Courtesy of GENERAL MOTORS COMPANY
  15. Install Generator Shield (3) Generator Shield Replacement (LTG) Generator Shield Replacement (LCV)
