Rear Center Seat Belt Retractor Replacement

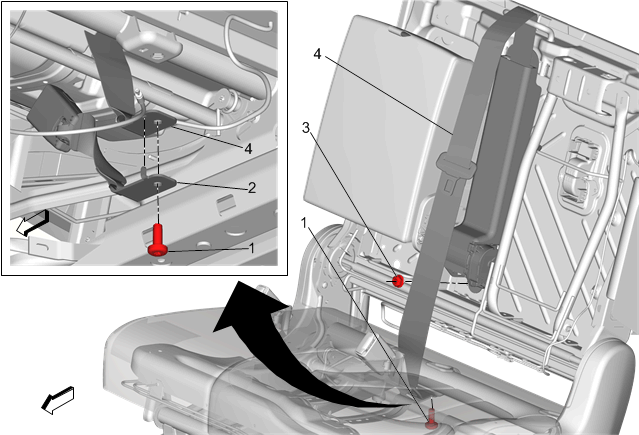

Fig 1: Rear Center Seat Belt Retractor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Rear Seat (60%). Refer to Rear Seat Removal and Installation (60%) Remove Rear Seat Back Cushion Cover and Pad (60%). Refer to Rear Seat Back Cushion Cover and Pad Replacement (60%)
1	Rear Center Seat Belt Retractor Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Center Seat Belt Buckle Procedure Disengage the center shoulder belt from the center seat belt buckle and slide it through the rear seat opening.
3	Rear Center Seat Belt Retractor Nut Tighten 45 N.m (33 lb ft)
4	Rear Center Seat Belt Retractor
