Front of the Engine Compartment Components (LGX)

Front of the Engine Compartment Components (LGX)

Items
1. X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3 (LGX)X50A Fuse Block - Underhood X4 (LGX)X50A Fuse Block - Underhood X5X50A Fuse Block - Underhood X6 (LGX)X50A Fuse Block - Underhood X8
2. K20 Engine Control Module K20 Engine Control Module X1 (LGX)K20 Engine Control Module X2 (LGX)K20 Engine Control Module X3 (LGX)

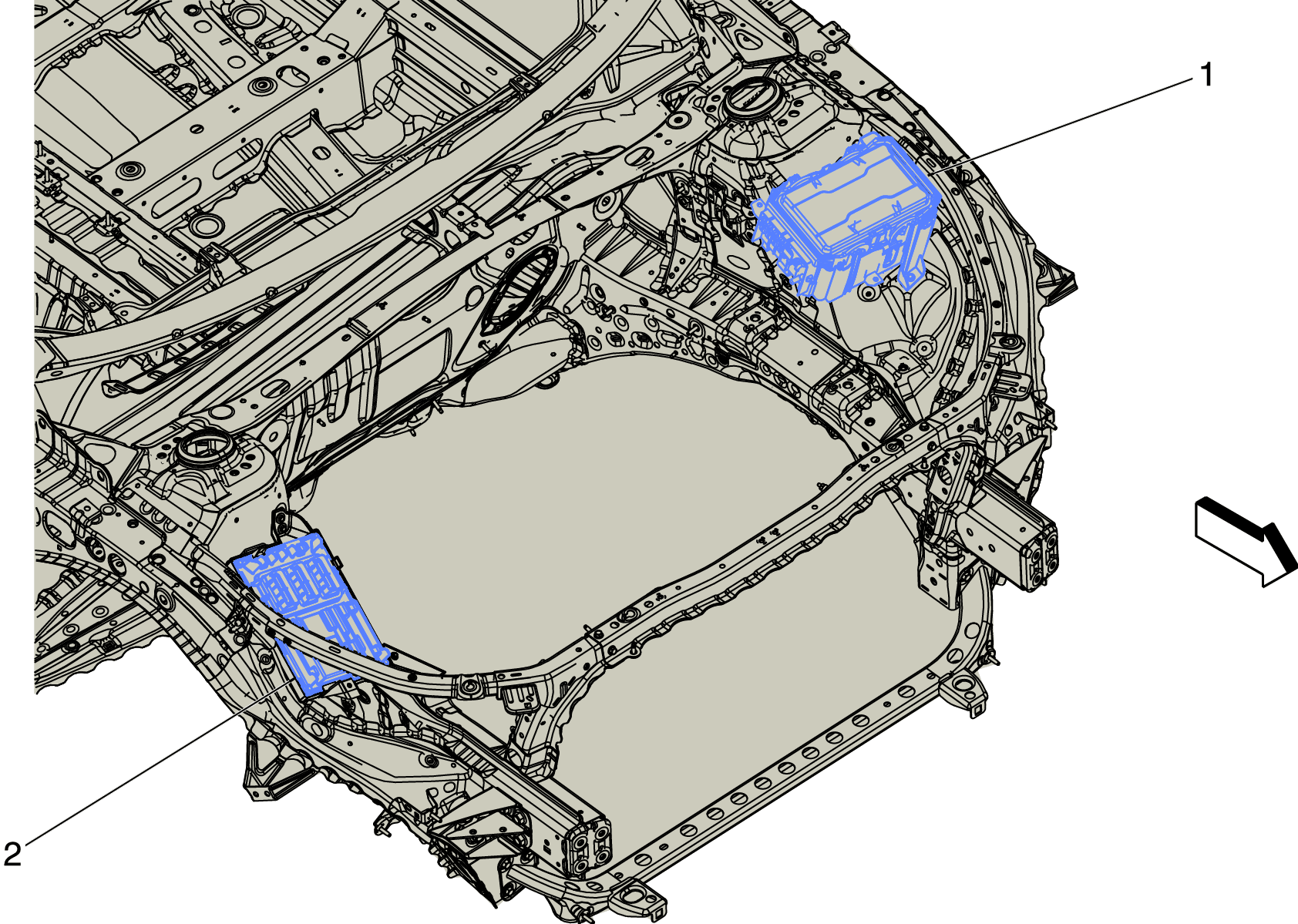

Fig 1: Front of the Engine Compartment Components (LGX)

Courtesy of GENERAL MOTORS COMPANY
