Installation Procedure

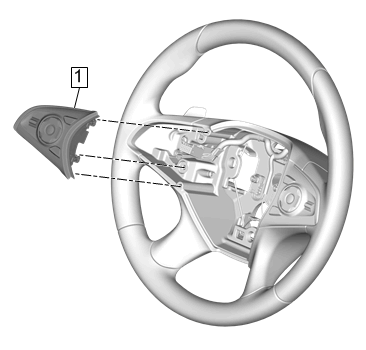

    Fig 1: Cruise Control Switch
    GM4421157Courtesy of GENERAL MOTORS COMPANY
  1. Install the cruise control switch (1):
    1. Connect the electrical connector.
    2. Position the cruise control switch on the steering wheel.

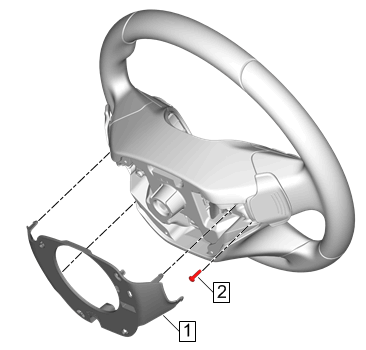

    2. Fig 2: Steering Wheel Back Cover
    GM4421156Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Cruise Control Switch Bolt 2 - Install and tighten1.5 N.m (13 lb in)
  3. Install the steering wheel back cover (1):
    1. { If equipped }{ UVD}Connect the electrical connectors.
    2. Position the steering wheel back cover on the steering wheel.
    3. Ensure ALL of the retaining tabs are locked in place.
  4. Steering Wheel - Install - Steering Wheel Replacement
