Radio Bracket Replacement

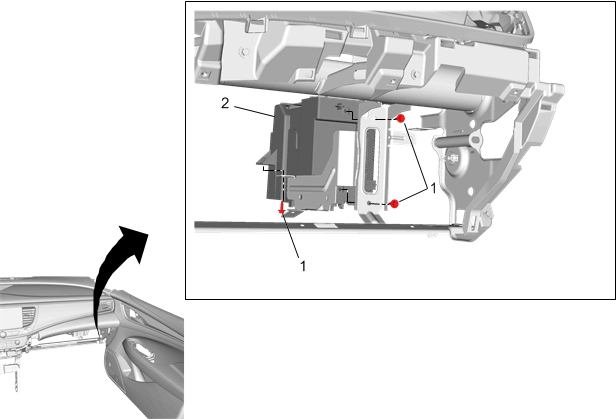

Fig 1: Radio Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Instrument Panel Compartment Door Opening Frame Replacement
1	Radio Bracket Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Radio Bracket Procedure Disconnect the electrical connectors. Transfer components as necessary. Push forward to disengage pin.

Callout

Component Name

Radio Bracket Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Radio Bracket

Procedure
