Ignition Mode Switch

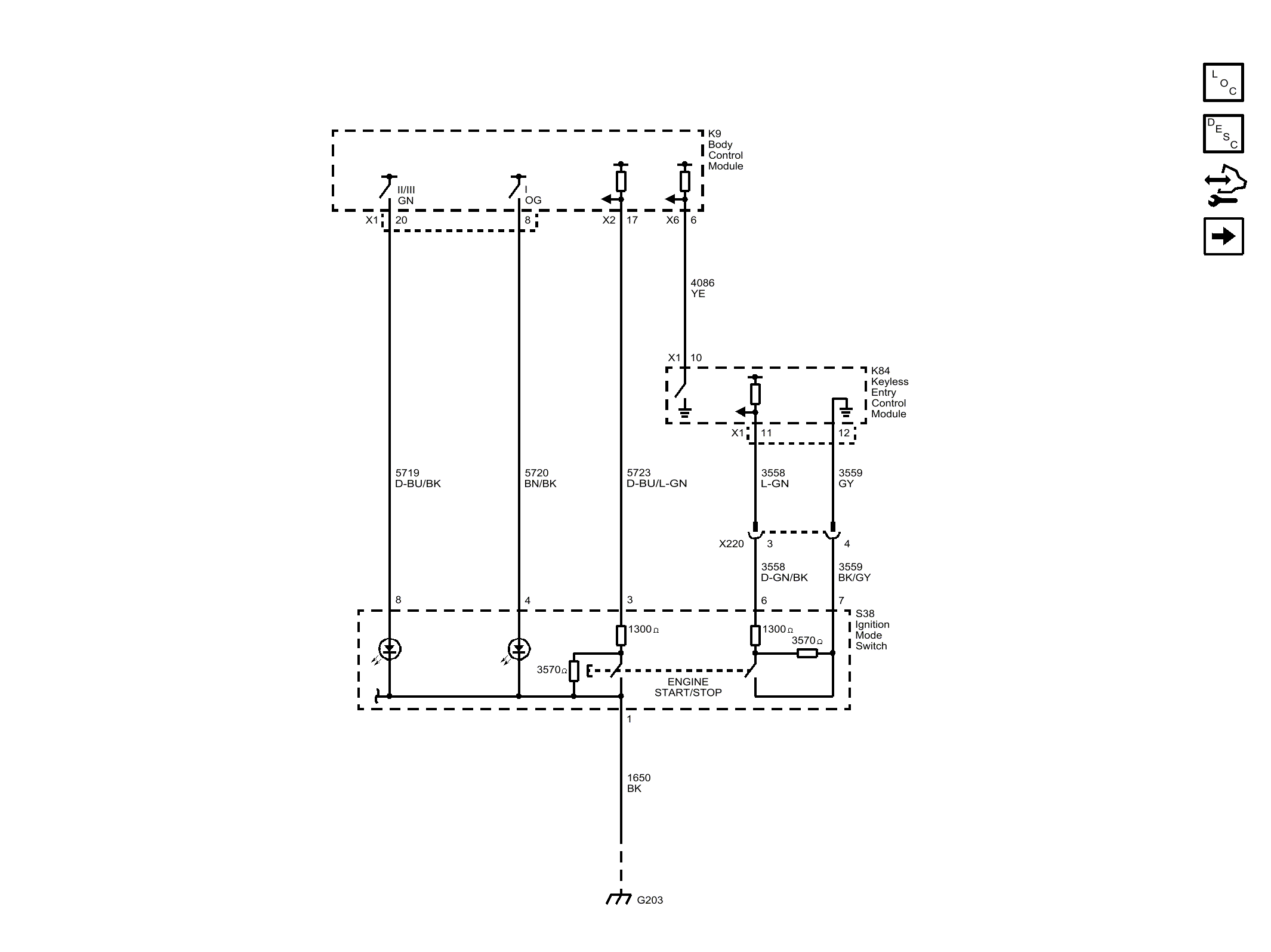

Fig 1: Ignition Mode Switch
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
