Manifold Absolute Pressure Sensor Replacement

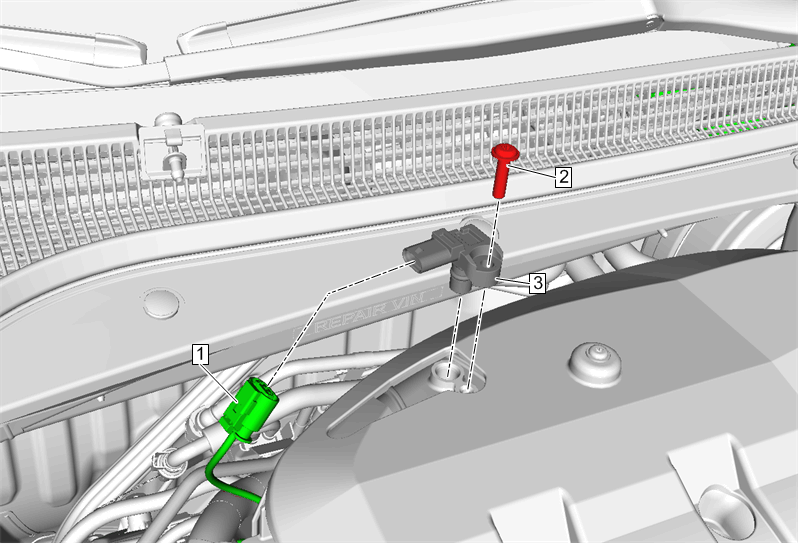

| Callout | Component Name |
|---|---|
| 1 | Electrical Connector |
| 2 | Manifold Absolute Pressure Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten: 7 N.m (62 lb in) |
| 3 | Manifold Absolute Pressure Sensor
NOTE:
Always install the seal supplied with the manifold absolute pressure sensor. |
