Mass Airflow Sensor Replacement

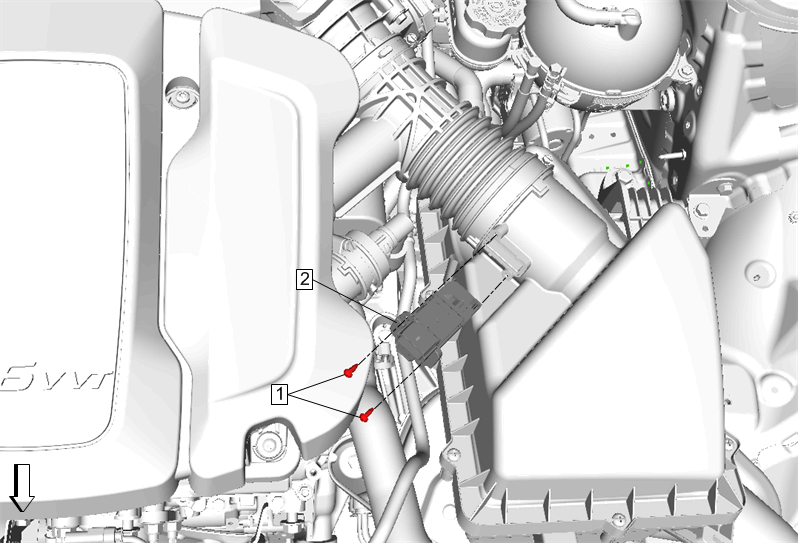

Fig 1: Mass Airflow Sensor
GM4452780Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Mass Airflow Sensor Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
1.4 N.m (12 lb in)
2 Mass Airflow Sensor
Procedure
Disconnect the electrical connector.
