Installation Procedure

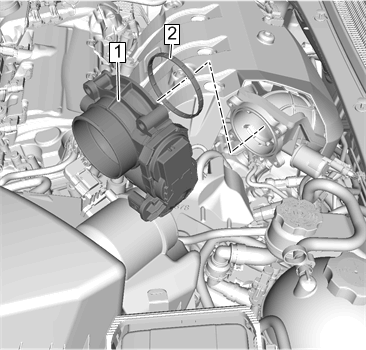

    Fig 1: Throttle Body
    GM4487693Courtesy of GENERAL MOTORS COMPANY
  1. Throttle Body Gasket 2 - Install NEW
  2. Throttle Body 1 - Install

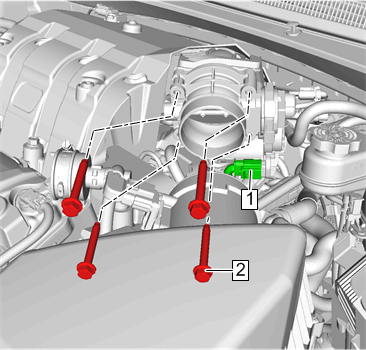

    3. Fig 2: Throttle Body Bolts
    GM4487690Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Throttle Body Bolt 2 - Install and tighten 10 N.m (89 lb in)
  4. Electrical Connector 1 - Connect
  5. Air Cleaner Outlet Duct - Install - Air Cleaner Outlet Duct Replacement
  6. Perform the throttle learn procedure. Throttle or Idle Learn
