Ground Views: G303
G303
Items
1. G303 Instrument Panel Harness

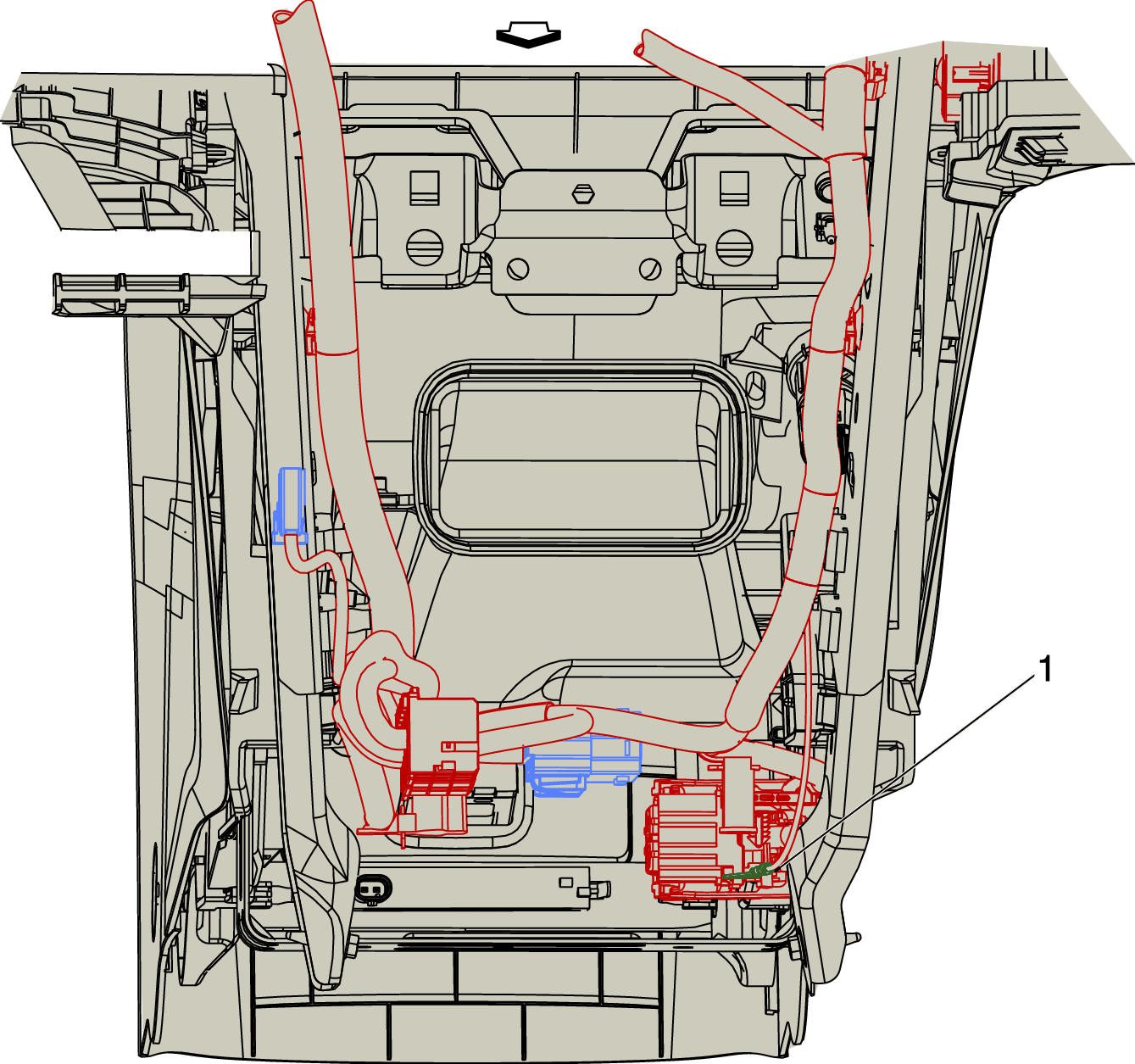

Fig 1: G303
Courtesy of GENERAL MOTORS COMPANY
