Ground Views: G305
G305
Items
1. G305 Body Harness

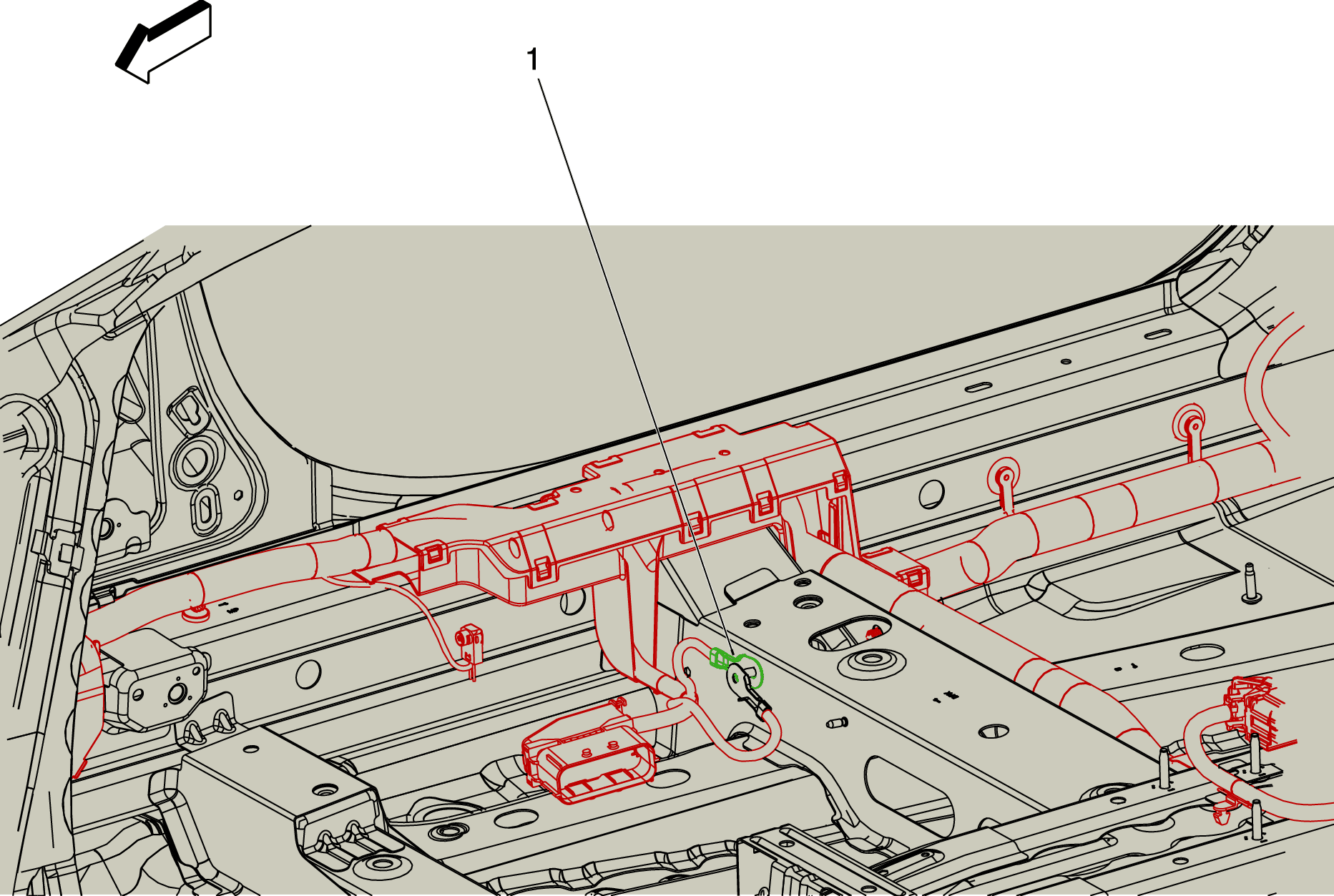

Fig 1: G305
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
