Service Engine Soon Light With P0446 (PIC6306A)

SERVICE ENGINE SOON LIGHT WITH P0446

TECHNICAL SERVICE BULLETIN

SERVICE INFORMATION

Brand:	Model:	Model Year:		VIN:		Engine:	Transmission:
		from	to	from	to
Buick	LaCrosse	2017-2018		All	All	All	All

Involved Region or Country	North America
Condition	A customer may bring their vehicle in with a SES light on. When diagnosing the concern code P0446 will be found.
Cause	This code may have been set due to dust intrusion into the EVAP canister through the air inlet pipe.

CORRECTION

Clean filters in air inlet to EVAP canister, clean line and replace canister.

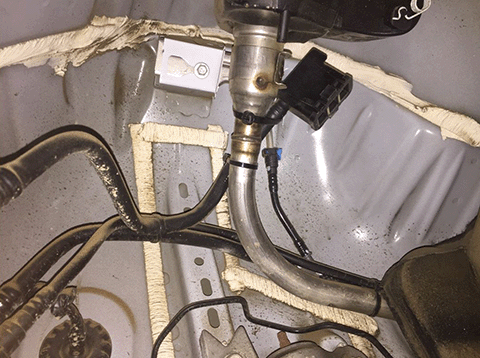

Inlet pipe with filter housing is attached to fuel inlet pipe with zip ties.

Courtesy of GENERAL MOTORS COMPANY

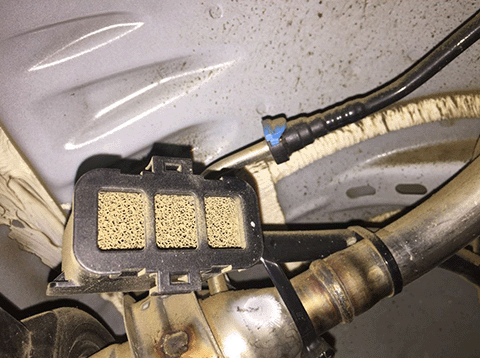

Disconnect air inlet pipe from EVAP canister. Remove the cover from the air inlet housing.

Courtesy of GENERAL MOTORS COMPANY

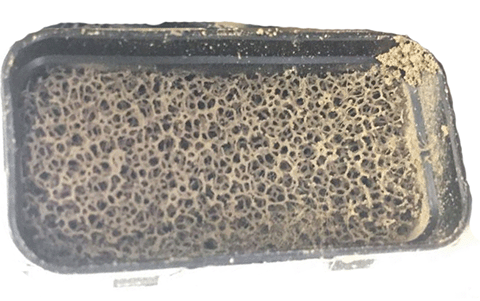

Remove both filters from air inlet and blow dust out of filters with compressed air from shop air supply.

Courtesy of GENERAL MOTORS COMPANY

With EVAP air inlet pipe disconnected from canister blow all dust out of pipe. Install new EVAP canister, reinstall filters into inlet and reconnect air inlet pipe to canister.

This PI may be converted to a Bulletin in the future if new information becomes available.

WARRANTY INFORMATION

For vehicles repaired under the Bumper-to-Bumper coverage (Canada Base Warranty coverage), use the following labor operation. Reference the Applicable Warranties section of Investigate Vehicle History (IVH) for coverage information.

Labor Operation	Description	Labor Time
2080938	Replace canister and clean filter assembly	.9

Version	2
Modified	09/25/2017 - Created on 04/01/2019 - Updated Correction Section
