Air Cleaner Element Replacement

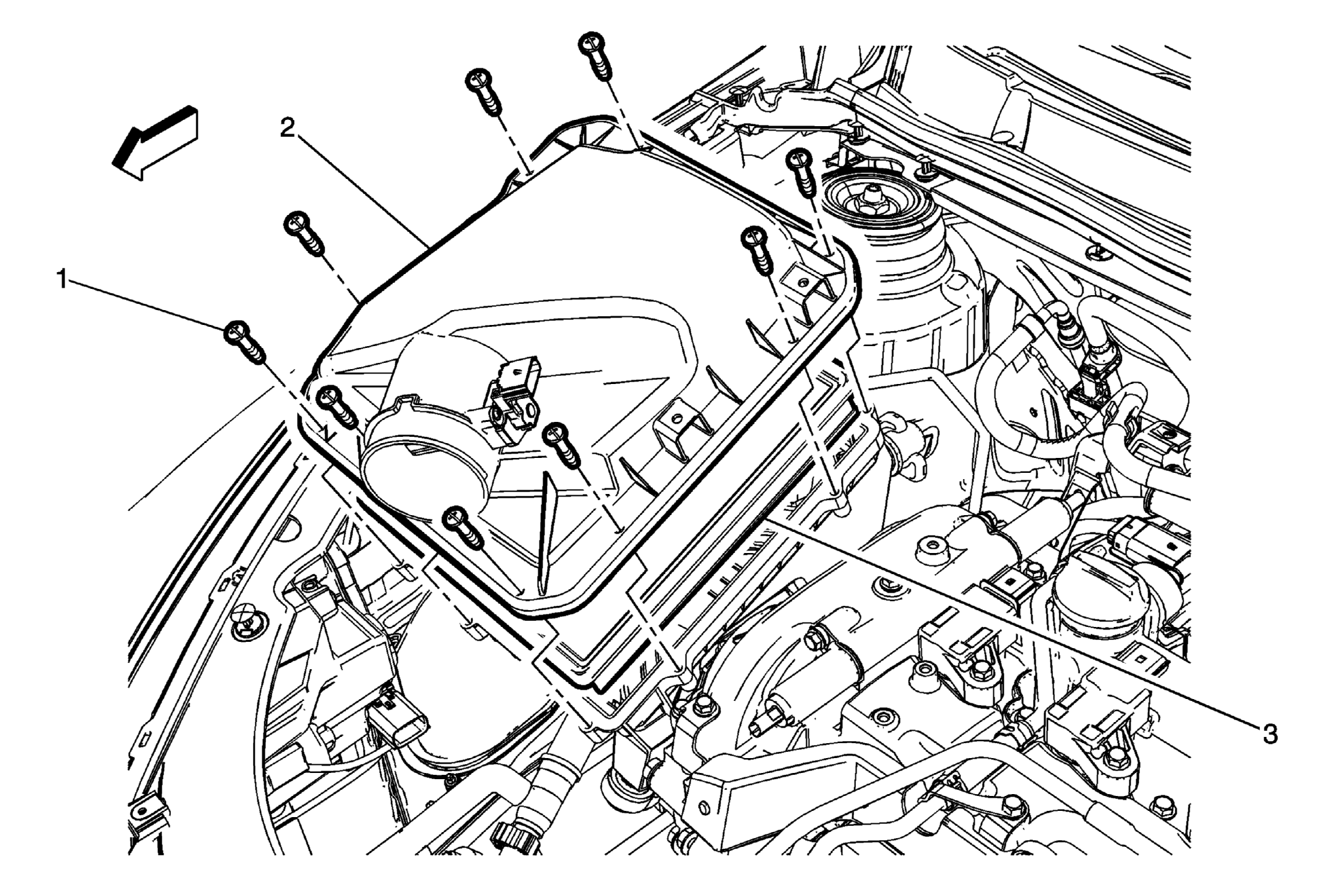

Fig 1: Air Cleaner Element (LTG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement . Disconnect the mass airflow sensor electrical connector. Unclip the wiring harness from the air cleaner upper cover.
1	Air Cleaner Assembly Fasteners (Qty: 9) CAUTION: Refer to Fastener Caution .
2	Air Cleaner Upper Cover
3	Air Cleaner Element
