Data Communication Wiring Schematics
>>
High Speed GMLAN (CZ2)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
High Speed GMLAN (CZ2)

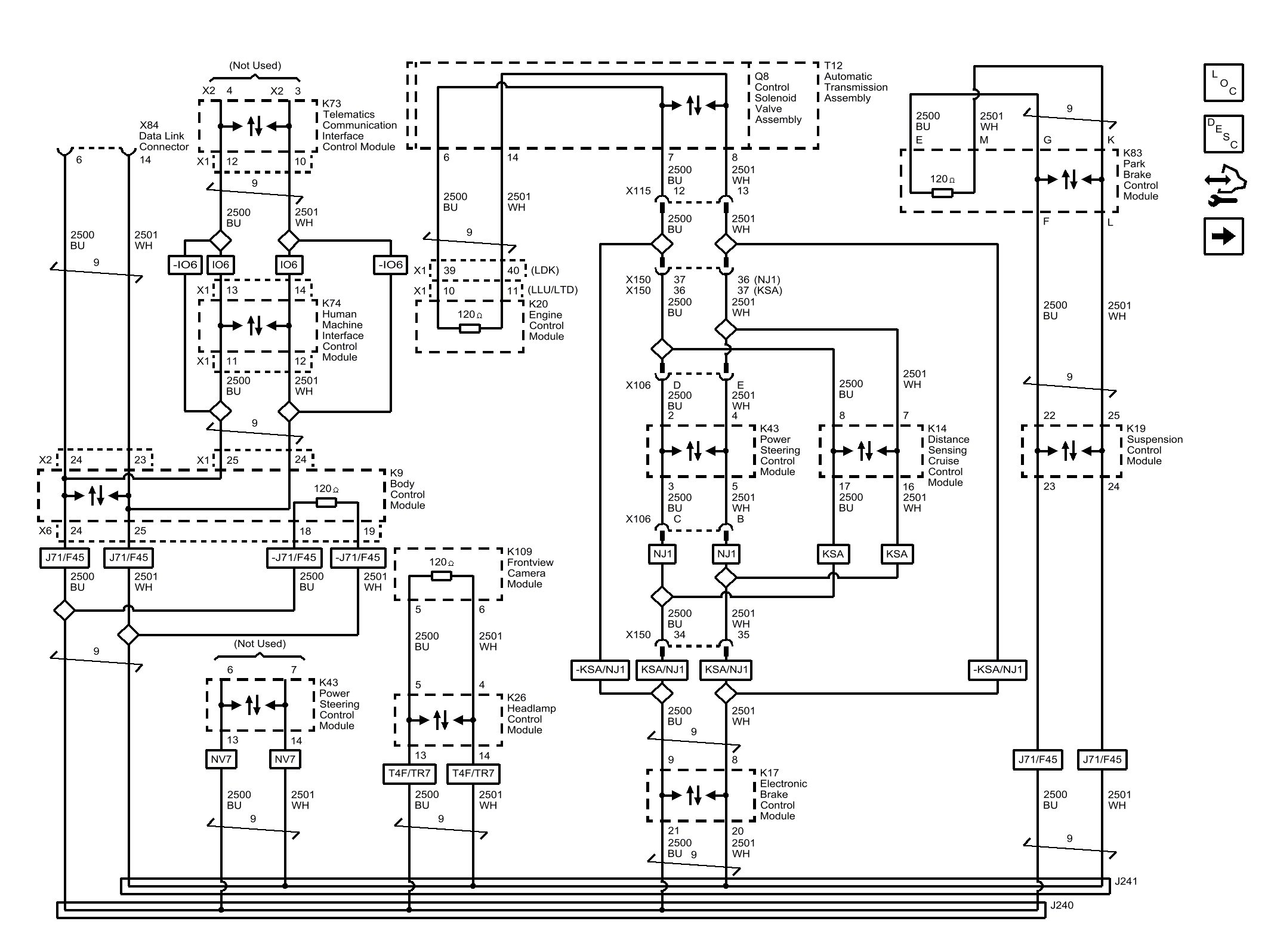

Fig 1: High Speed GMLAN (CZ2)
Courtesy of GENERAL MOTORS COMPANY
