Front Side Door Window Regulator Motor Replacement

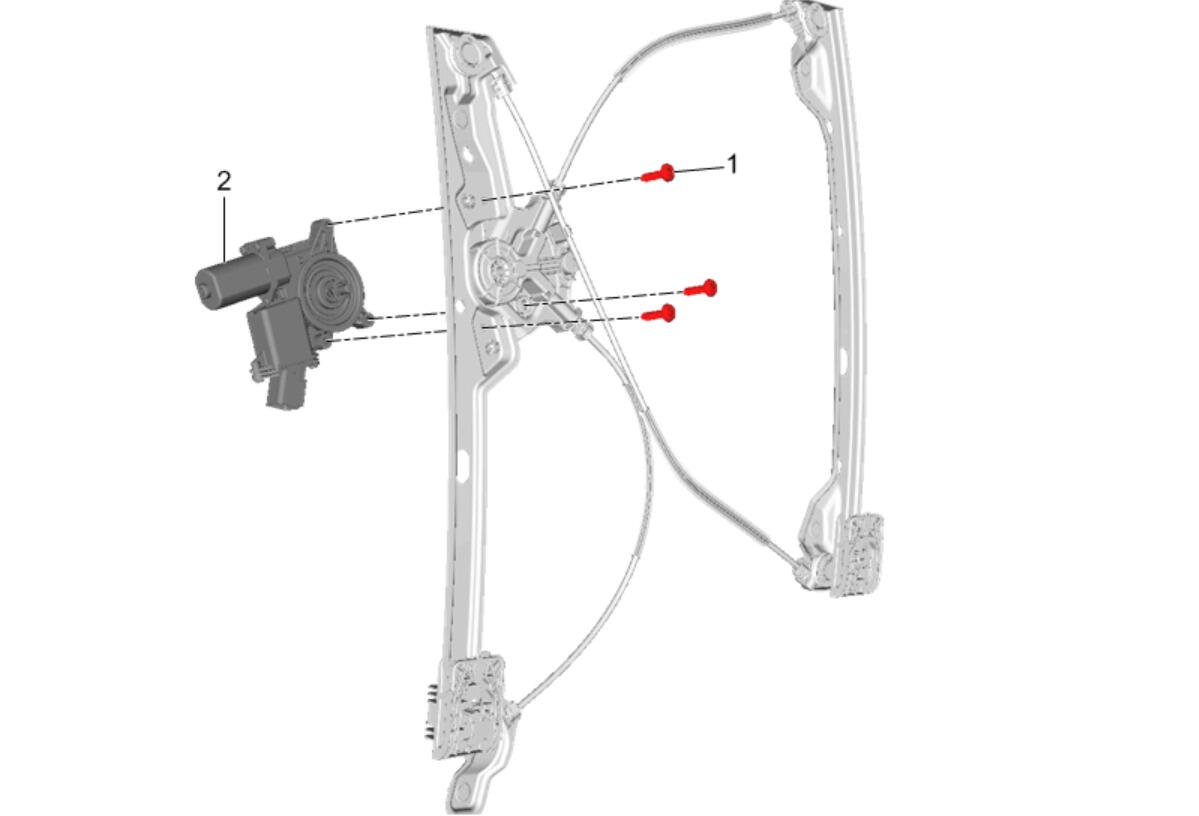

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Front Side Door Window Regulator Replacement Use masking tape to tape the window in the full up position to the door frame.
1	Front Side Door Window Regulator Motor Screw [3x] CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Front Side Door Window Regulator Motor Procedure Inspect the door window for proper operation before installing the door trim panel.

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

Front Side Door Window Regulator Replacement
Use masking tape to tape the window in the full up position to the door frame.

Front Side Door Window Regulator Motor Screw [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
11 N.m (97 lb in)

Front Side Door Window Regulator Motor
Procedure
Inspect the door window for proper operation before installing the door trim panel.
