Installation Procedure

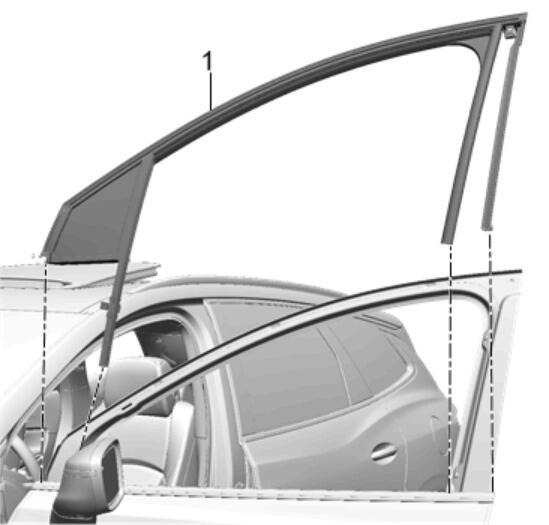

Front Side Door Window Weatherstrip (1) - Install

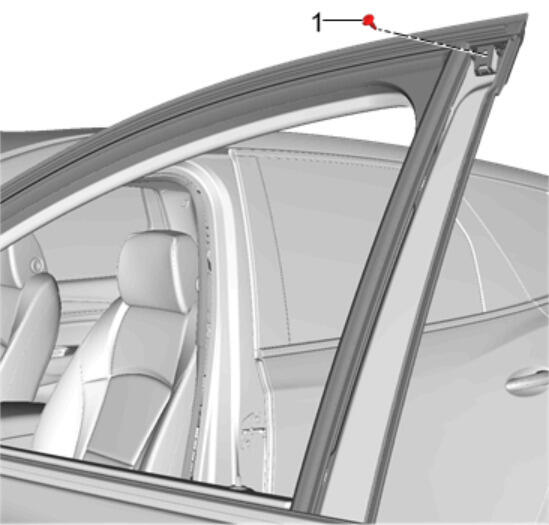

Front Side Door Window Weatherstrip Bolt (1) - Install and tighten 2.5 N.m (22 lb in)

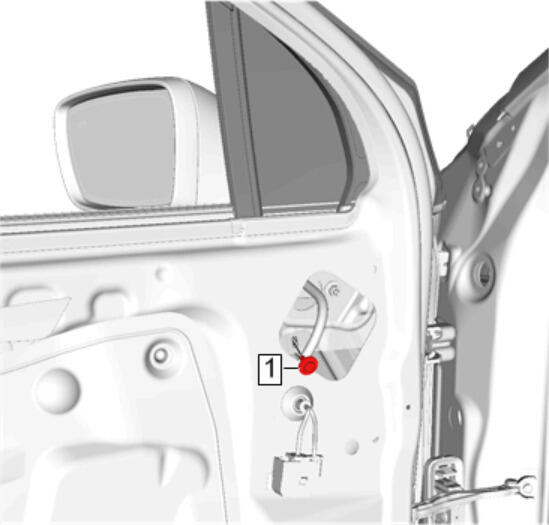

Front Side Door Window Frame Inner Upper Screw (1) - Install and tighten 11 N.m (97 lb in)

Front Side Door Water Deflector - Upper (1) - Install - Front Side Door Water Deflector Replacement

Front Side Door Window (2) - Install - Front Side Door Window Replacement

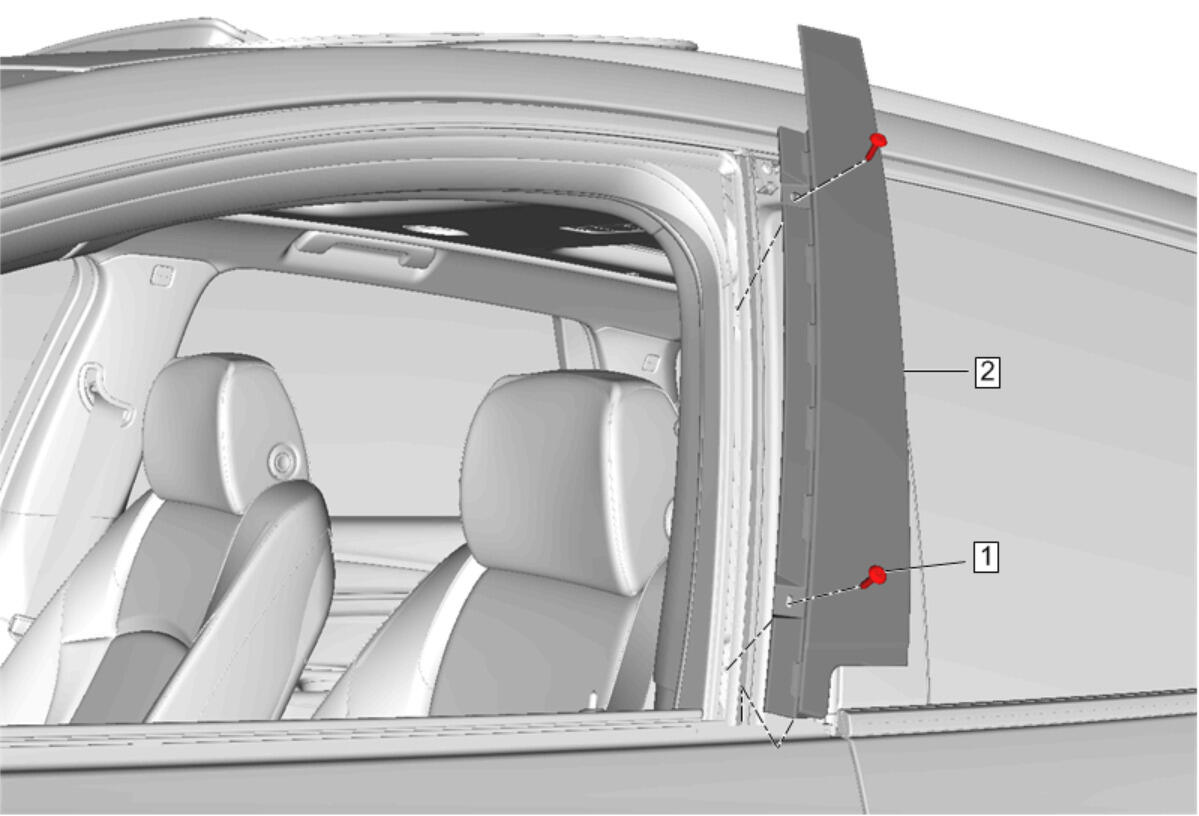

Front Side Door Window Frame Rear Applique (2) - Install - Front Side Door Window Frame Rear Applique Replacement

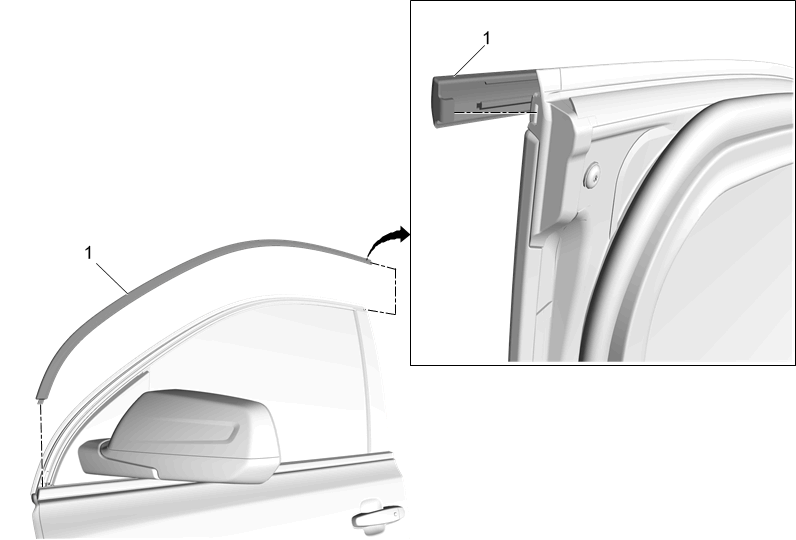

Front Side Door Window Upper Reveal Molding (1) - Install - Front Side Door Window Upper Reveal Molding Replacement
