Keyless Entry - Passive Entry and Keyless Start (Chevrolet with ATH) (2 of 2)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

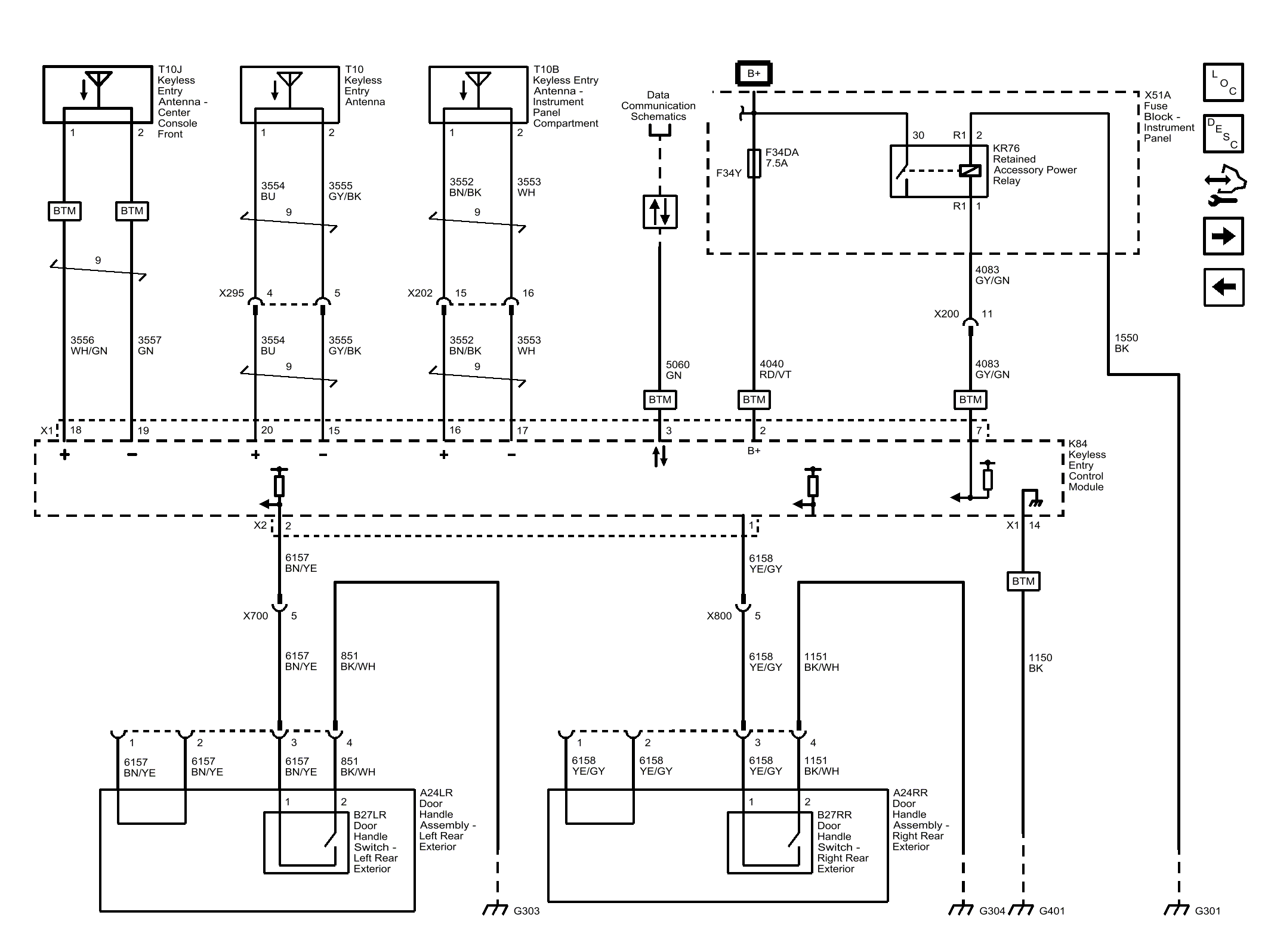

Keyless Entry - Passive Entry and Keyless Start (Chevrolet with ATH) (2 of 2)
