Installation Procedure

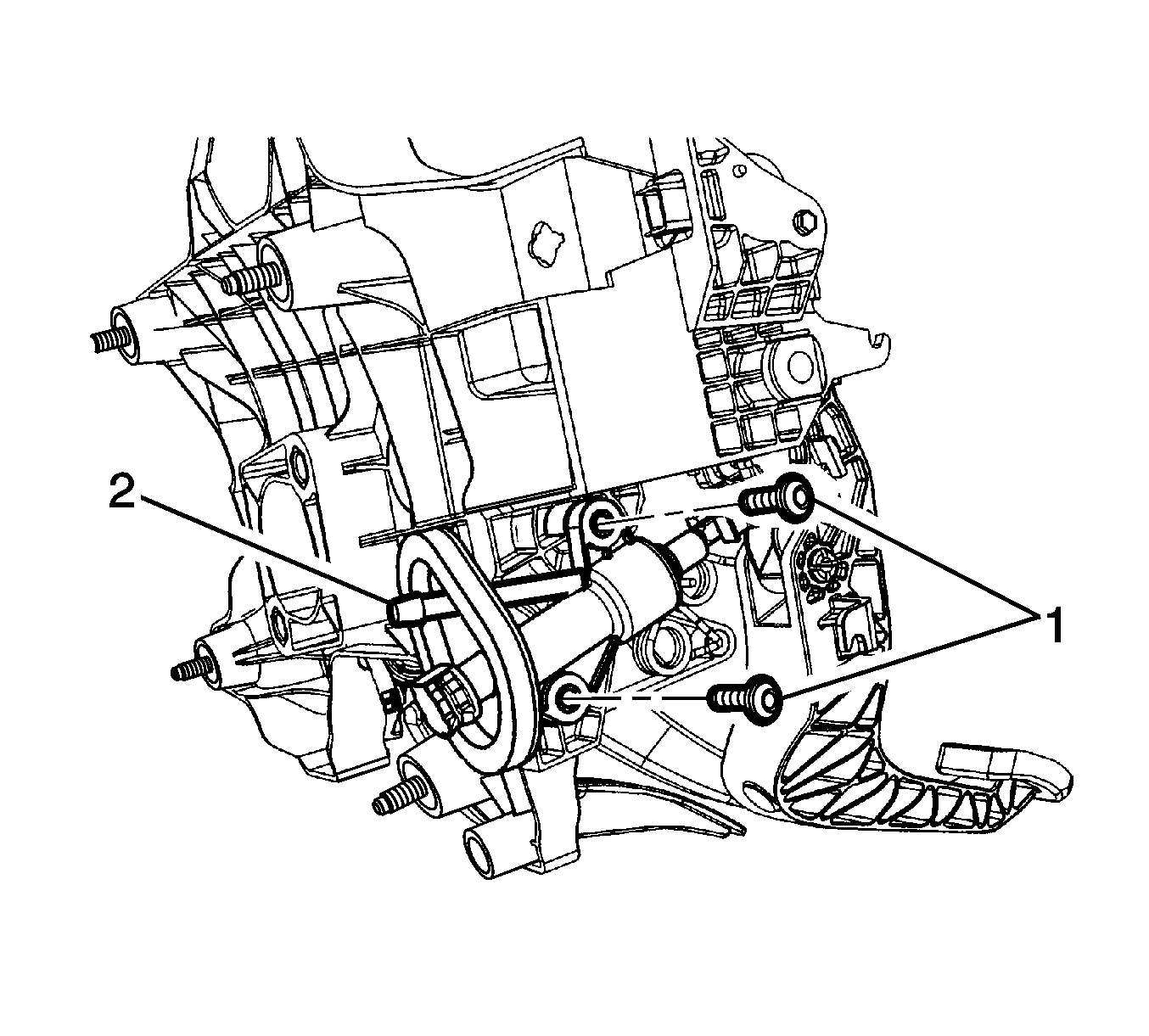

Install the clutch master cylinder (2) into the brake pedal assembly.
- Install the 2 clutch master cylinder mount fasteners (1) and tighten to 4.5 N.m (40 lb in).
- NOTE:
An audible click will be heard when the clip is correctly seated.

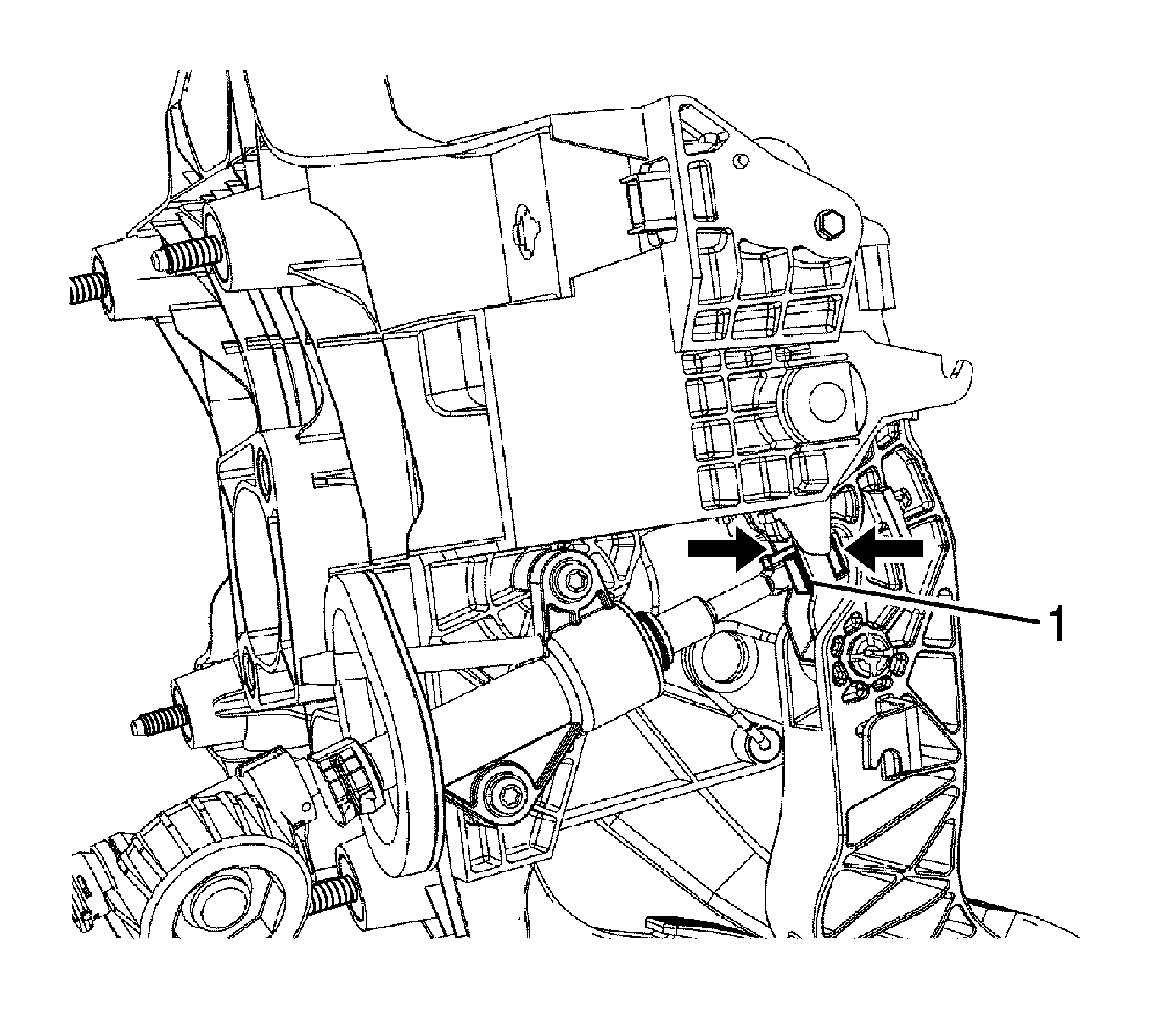

Connect the push rod retainer (1) to the clutch pedal.
- Install the brake pedal assembly. Refer to Brake, Accelerator, and Clutch Pedal Replacement .

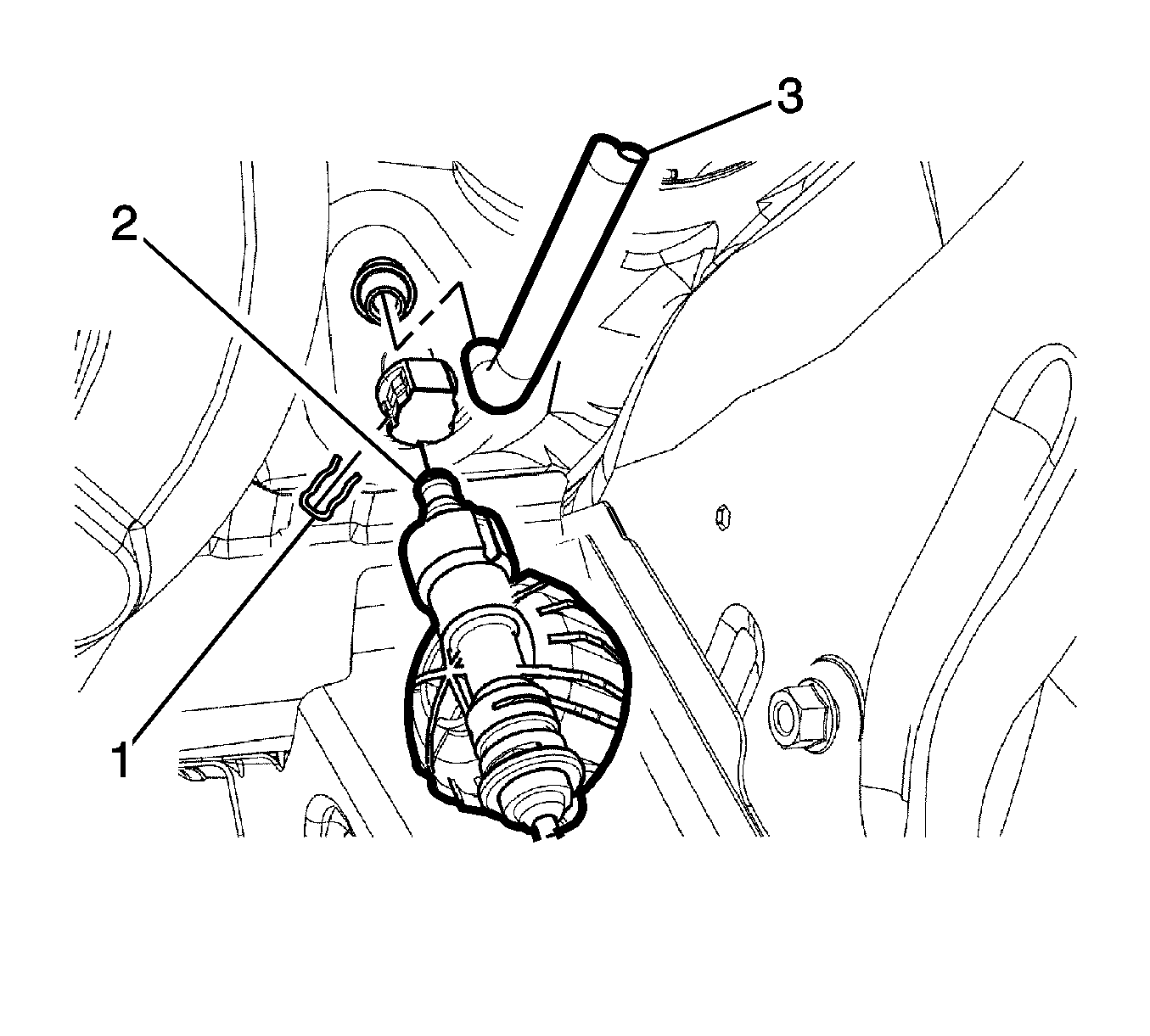

Connect the clutch actuator cylinder front pipe (2) to the clutch master cylinder.
- Install the retaining clip (1).
- Install the clutch master cylinder reservoir hose (3) to the master cylinder. Refer to Clutch Master Cylinder Reservoir Hose Replacement .

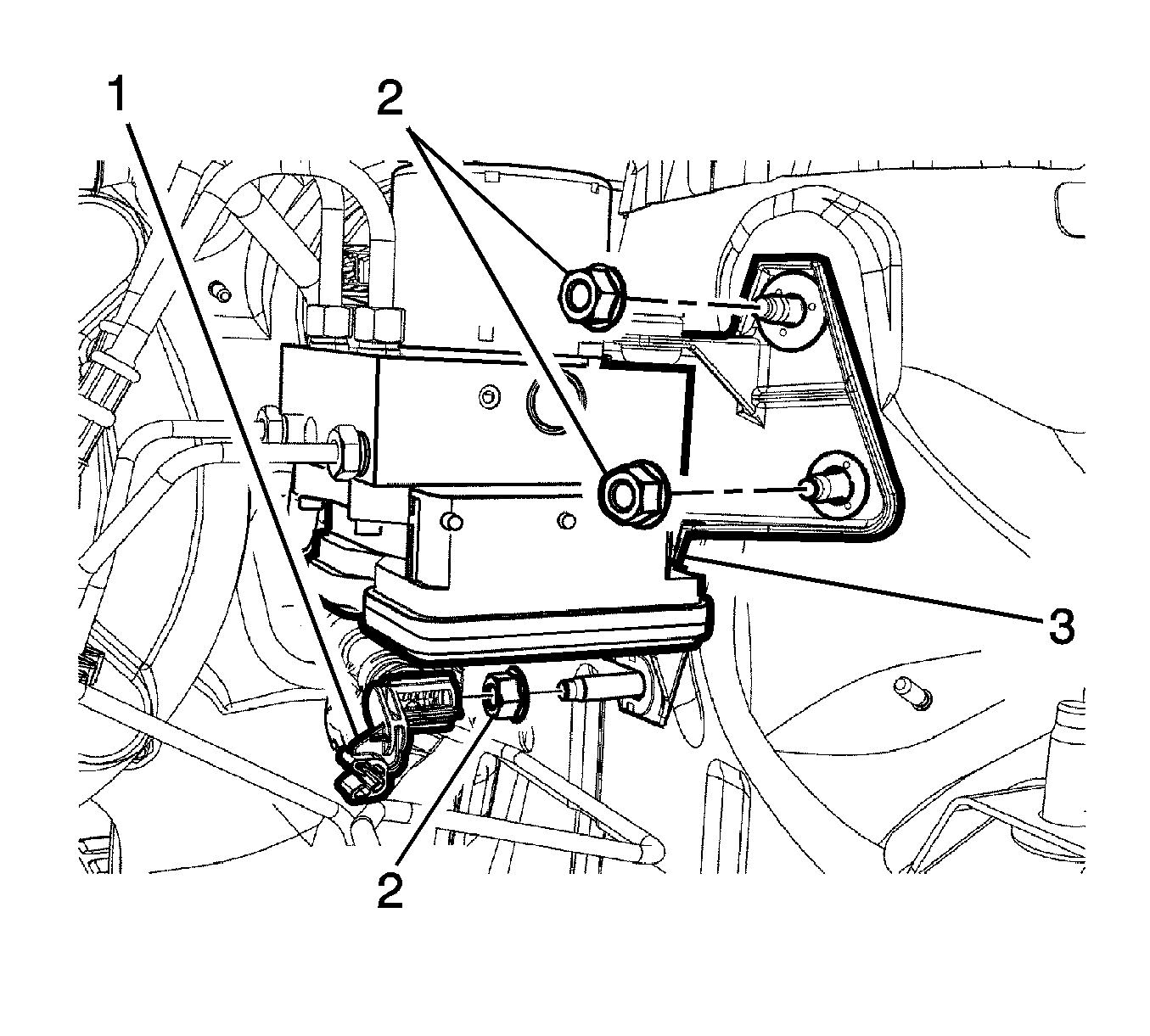

Install the 3 BPMV bracket assembly nuts (2) to the vehicle and tighten to 12 N.m (106 lb in).
- Install the clutch actuator cylinder pipe retainer (1).

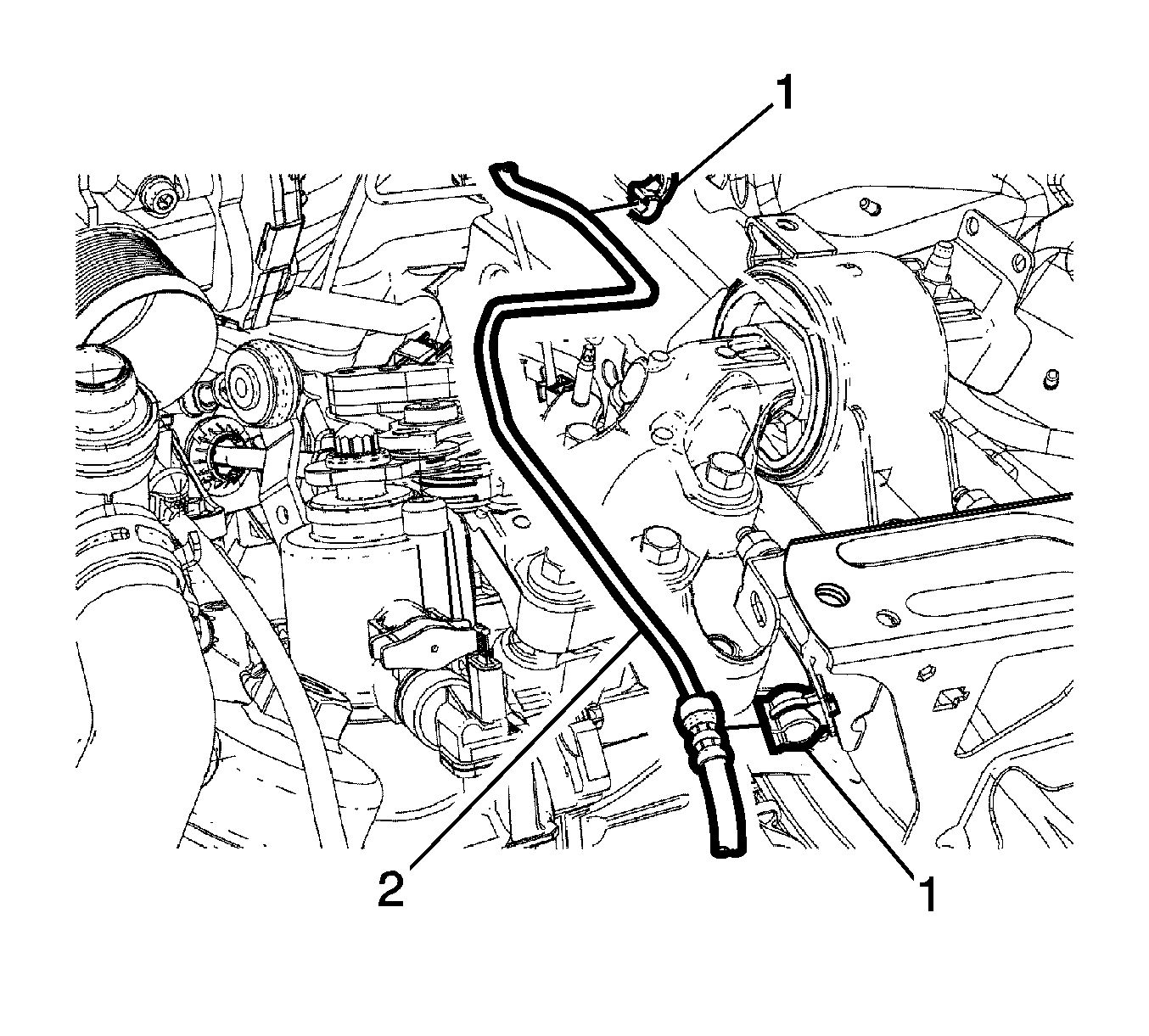

Clip the clutch actuator cylinder front pipe (2) into the 2 retainers (1).
- Bleed the hydraulic clutch system. Refer to Hydraulic Clutch System Bleeding .
- Install the battery tray. Refer to Battery Tray Replacement .
- Fill the reservoir with GM approved brake fluid from a clean, sealed brake fluid container up to the MAX level.
CAUTION:
Refer to Fastener Caution .
