Battery Tray Replacement

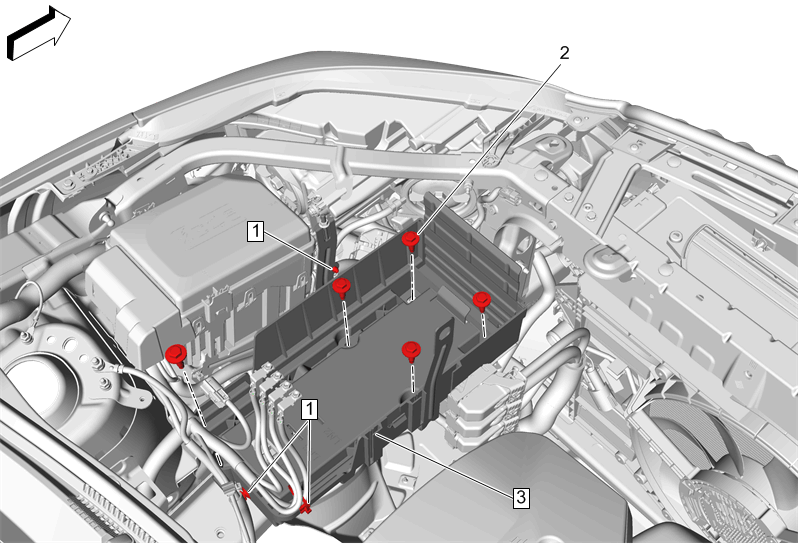

GM3910240Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Battery Replacement
  2. Engine Control Module Bracket Replacement (LTG)Engine Control Module Bracket Replacement (LCV)
1 Retainer [3x]
2 Battery Tray Bolt [5x]
CAUTION:

Refer to Fastener Caution .


Tighten
22 N.m (16 lb ft)
3 Battery Tray
