Installation Procedure

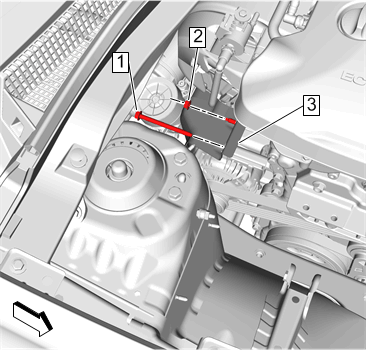

Generator Splash Shield (3) - Install
- Generator Nut (2) - Install and tighten 22 N.m (16 lb ft)
- Generator Bolt (1) - Install and tighten 22 N.m (16 lb ft)
- Raise and support the vehicle. Lifting and Jacking the Vehicle
Generator Bolt (1) - Install and tighten 22 N.m (16 lb ft)
- Lower the vehicle.
Air Cleaner Assembly (1) - Install - Air Cleaner Assembly Replacement (LCV)

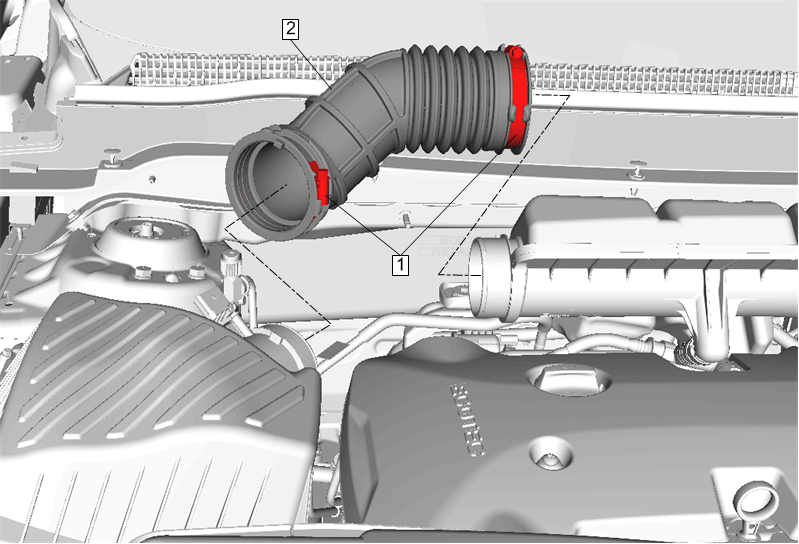

Air Cleaner Outlet Duct (2) - Install - Air Cleaner Outlet Duct Replacement (LCV)
- Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
CAUTION:
Refer to Fastener Caution
