Installation Procedure

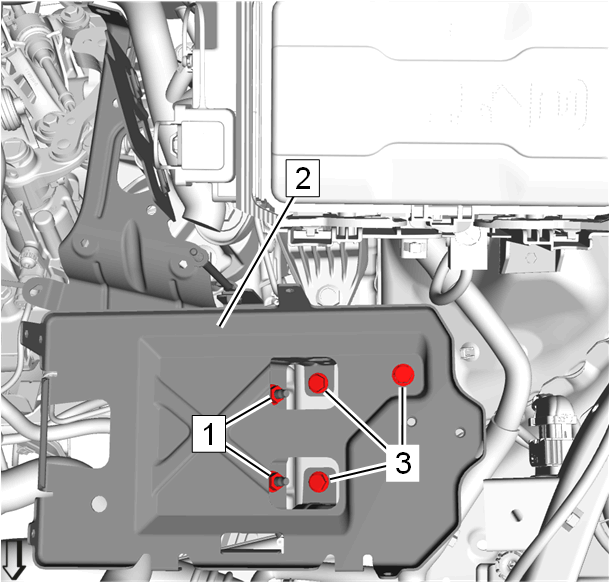

Battery Tray (2) - Install
- Battery Tray Bolt (3) - Install and tighten 22 N.m (16 lb ft) - [3x]
- Battery Tray Nut (1) - Install and tighten 22 N.m (16 lb ft) - [2x]

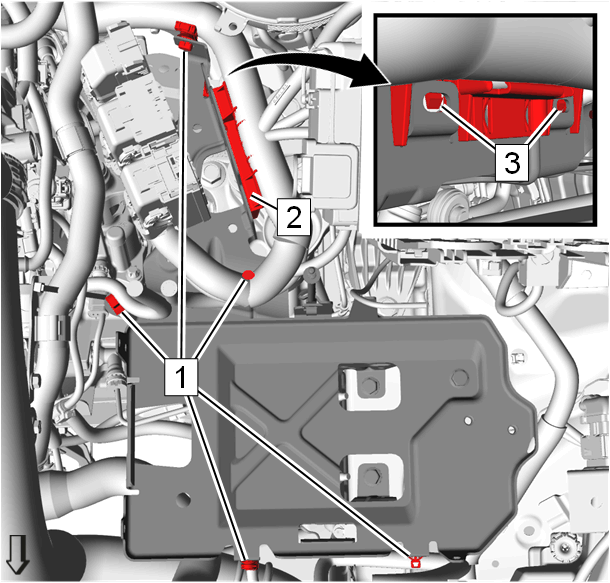

Retainer (1) - Reposition away
- Retaining Tab (3) - Install [2x]
- Retainer (1) - Install [5x]
- Engine Control Module - Install - Engine Control Module Replacement
- Battery - Install - Battery Replacement (3.6L LGX) , or Battery Replacement (2.0L LTG)
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (3.6L LGX) , or Battery Negative Cable Disconnection and Connection (2.0L LTG)
