Installation Procedure

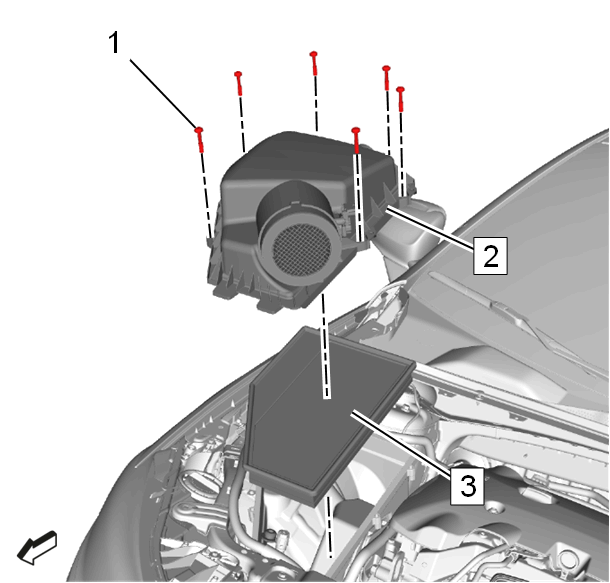

  1. GM4585106

    Air Cleaner Element (3) - Install

  2. Air Cleaner Upper Housing (2) - Install

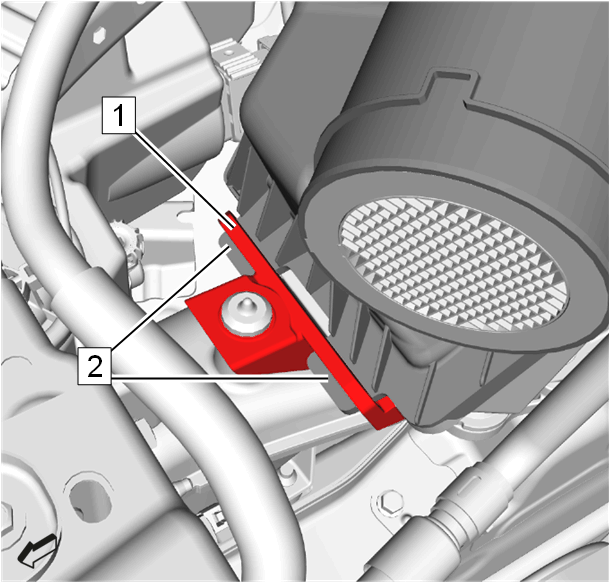

  3. GM4585108

    Ensure that the 2 lugs (1) are seated correctly in the air cleaner lower housing (2).

  4. GM4585106
    CAUTION:

    Refer to Fastener Caution

    Air Cleaner Upper Housing Bolt (1) - Install and tighten[6x]4N.m (35 lb in)

  5. GM4585105

    Air Cleaner Outlet Duct (3)@Air Cleaner Upper Housing (5) - Connect

  6. Air Cleaner Outlet Duct Clamp (4) - Tighten4N.m (35 lb in)
  7. Wiring Harness Clip (2) - Install
  8. Connect the electrical connector. (1)
