Installation Procedure

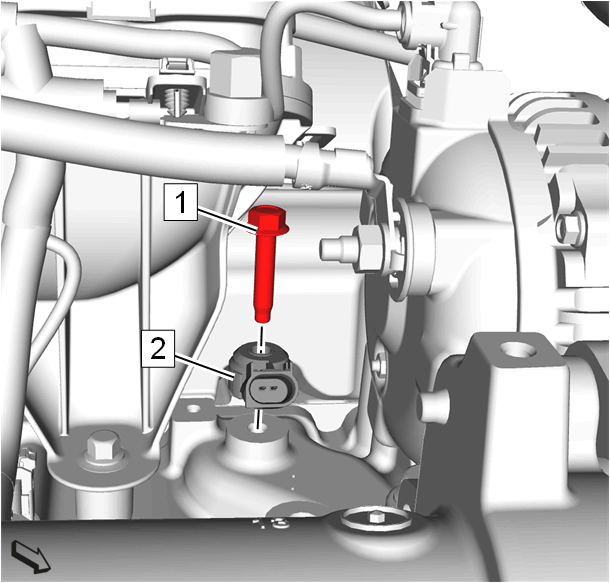

  1. GM4589390

    Knock Sensor (2) - Install

    2. CAUTION:

    Refer to: Fastener Caution

  2. Knock Sensor Bolt (1) - Install and tighten25N.m (18 lb ft)

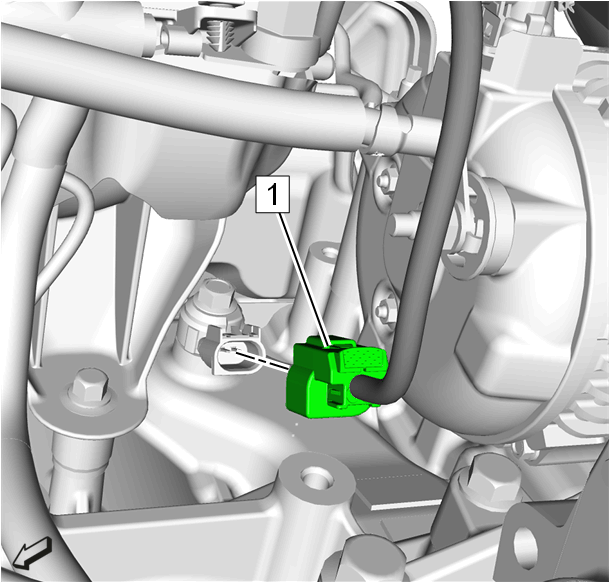

  3. GM4589389

    Connect the electrical connector. (1)

  4. Lower the vehicle.
