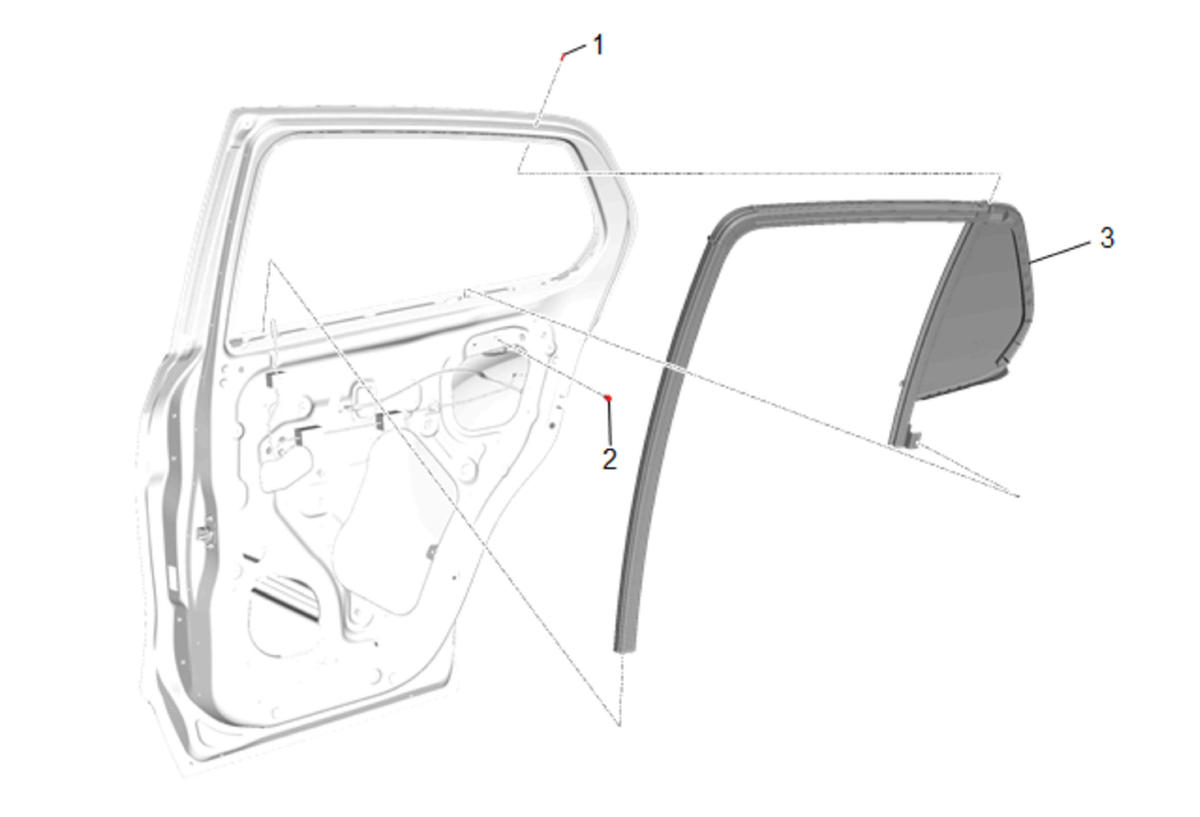

Rear Side Door Window Weatherstrip Replacement

Preliminary Procedures

1. Rear Side Door Window Regulator Replacement (Power) Rear Side Door Window Regulator Replacement
2. After the window has been detached from the regulator lower window into the door panel.
3. Rear Side Door Window Outer Sealing Strip Replacement

Procedure

1. Pull the weatherstrip out of the upper retainer to expose the upper screw.
2. Remove the weatherstrip from the rear lower guide.
3. In order to remove the window weatherstrip from the door frame, remove the window regulator and lower the window down in the door panel so that the rear window weatherstrip can be separated from the door frame.

Procedures

1. Insert the weatherstrip downward in the guide until fully seated.
2. Carefully move the regulator upward for short slow intervals, while ensuring that the window remains in the guides.
3. Inspect the door window for proper operation before installing the door trim.
