Heater Core Replacement

WARNING: This page is about a different car, the 2018 Chevrolet Trax and 2018 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedure Remove the heater case. Refer to Heater Case Replacement . Disconnect the heater core outlet tube. Refer to Heater Core Outlet Tube Replacement . Disconnect the heater core inlet tube. Refer to Heater Core Inlet Tube Replacement .

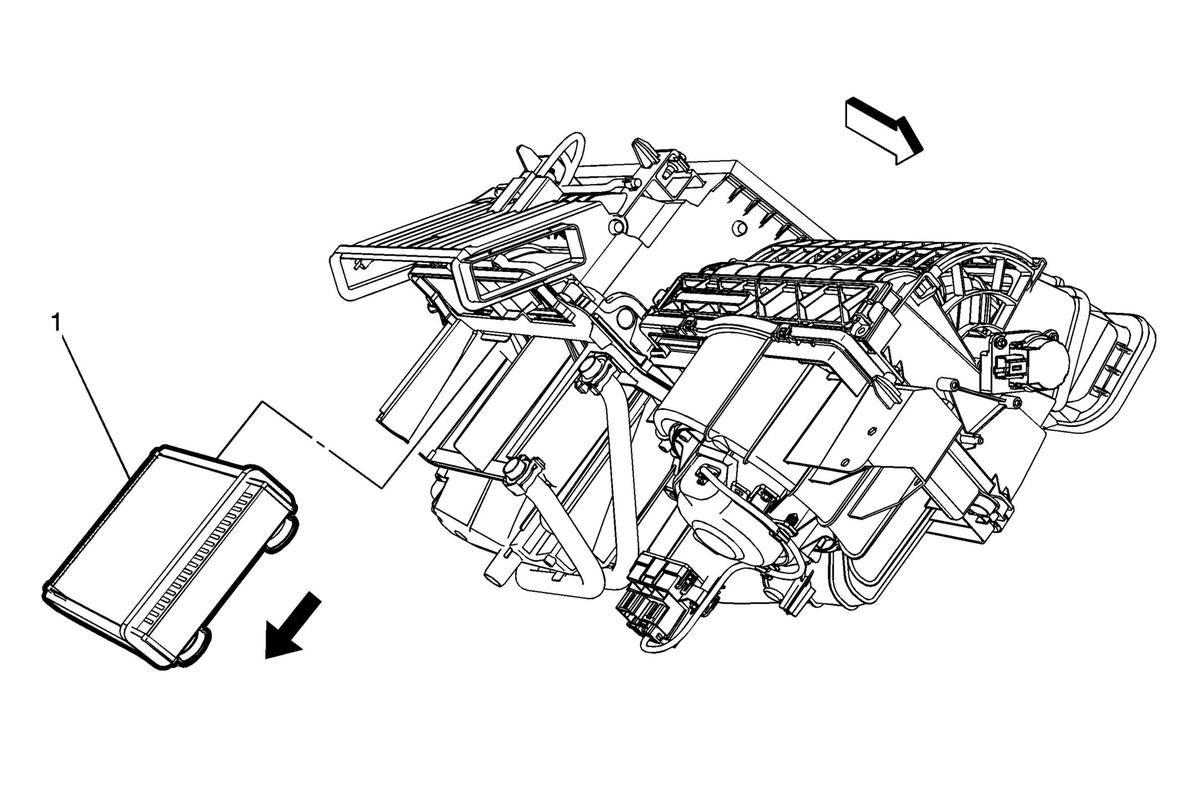

1	Heater Core Assembly

Callout

Component Name

Preliminary Procedure

Remove the heater case. Refer to Heater Case Replacement .
Disconnect the heater core outlet tube. Refer to Heater Core Outlet Tube Replacement .
Disconnect the heater core inlet tube. Refer to Heater Core Inlet Tube Replacement .

Heater Core Assembly
